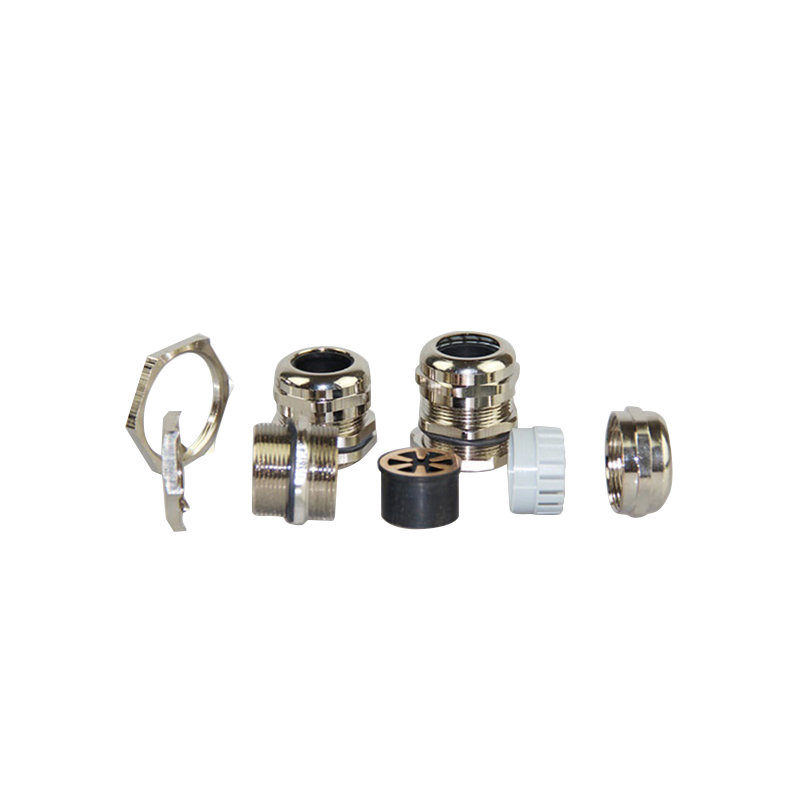

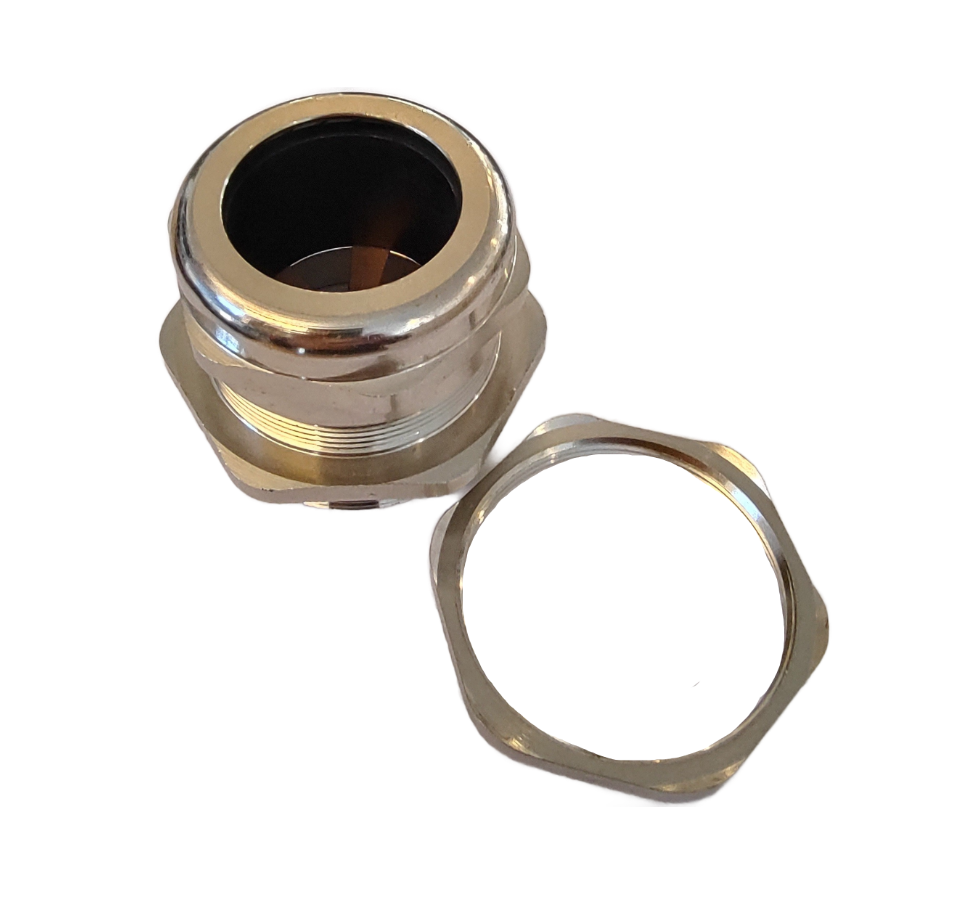

Cable gland, EMC, earthnut, M16x1,5, cable diameter=5-10mm
MT109856
Cable gland manufactured in brass with earthnut. The thread size is M16x1,5 and the plate thickness range is 5-10mm. Cable gland body tightening torque = 5,8Nm and Locknut tightening torque = 5Nm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
Yes
Tread size
M16x1,5
Insert material
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Earthnut
NV2
20
NV3
18
O-ring material
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Wrench
20
TÜV
Yes
IP Code
IP68
Thread length in mm
8
Hole diameter in mm
0
Internal height in mm
0
Cable diameter, min.
5
Cable diameter, max.
10
Plate thickness min.
0
Plate thickness max.
0
Long description
Cable gland manufactured in brass with earthnut. The thread size is M16x1,5 and the plate thickness range is 5-10mm. Cable gland body tightening torque = 5,8Nm and Locknut tightening torque = 5Nm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
