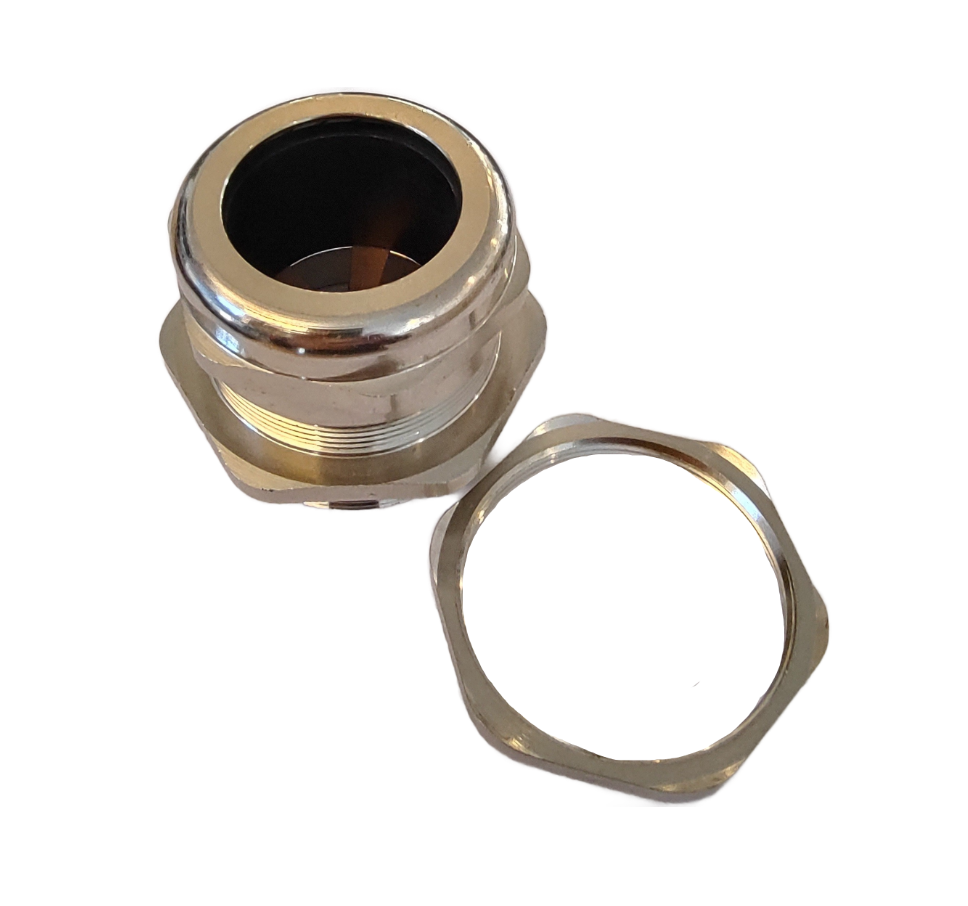

Cable gland, EMC, earthnut, M25x1,5, cable diameter=13-18mm
MT109858
Cable gland manufactured in brass with earthnut. The thread size is M25x1,5 and the plate thickness range is 13-18mm. Cable gland body tightening torque = 11Nm and Locknut tightening torque = 12Nm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
Yes
Tread size
M25x1,5
Insert material
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Earthnut

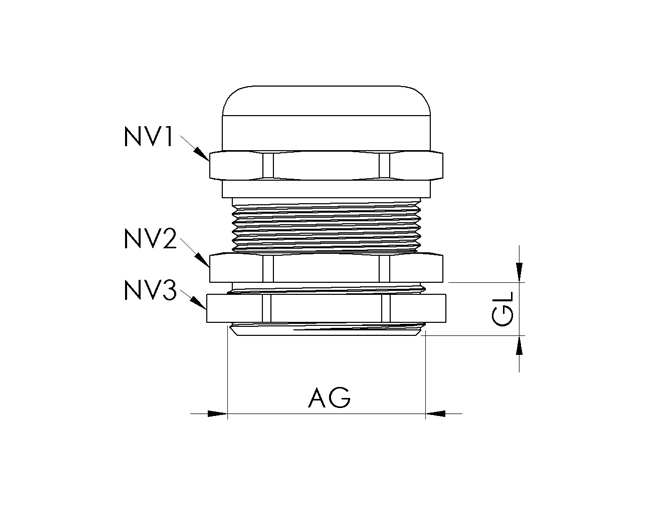

NV2
30
NV3
30
O-ring material
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Wrench
30
TÜV
Yes
IP Code
IP68
Thread length in mm
9
Hole diameter in mm
0
Internal height in mm
0
Cable diameter, min.
13
Cable diameter, max.
18
Plate thickness min.
0
Plate thickness max.
0
Long description
Cable gland manufactured in brass with earthnut. The thread size is M25x1,5 and the plate thickness range is 13-18mm. Cable gland body tightening torque = 11Nm and Locknut tightening torque = 12Nm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
