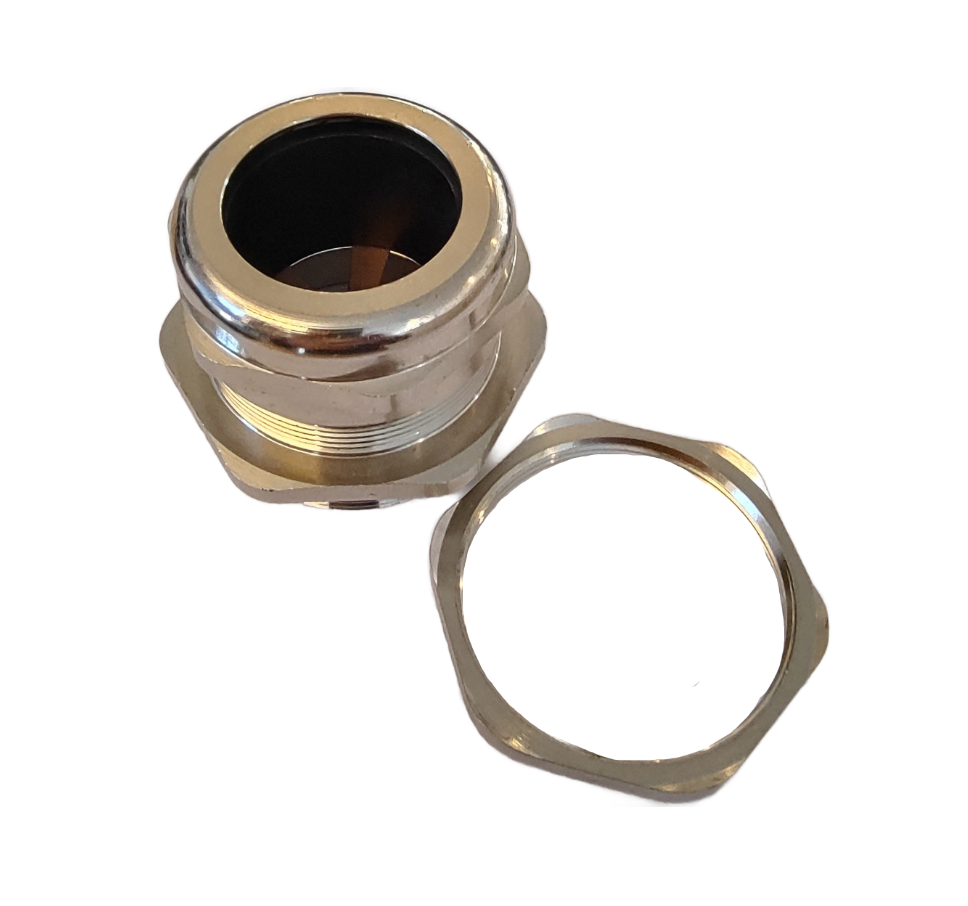

Cable gland, EMC, earthnut, PG 11, cable diameter=5-10mm
MT109865
Cable gland manufactured in brass with earthnut. The thread size is PG 11 and the plate thickness range is 5-10mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
Yes
Tread size
PG 11
Indsatsmateriale
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Earthnut

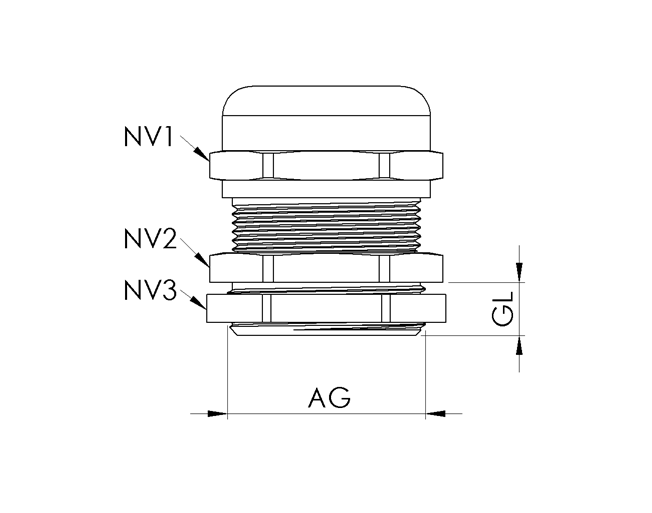

NV2
20
NV3
20
O-ring materiale
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Skruenøgle
20
TÜV
Yes
IP Code
IP68
Gevindlængde i mm
8
Indvendig højde i mm
0
Cable diameter, min.
5
Cable diameter, max.
10
Long description
Cable gland manufactured in brass with earthnut. The thread size is PG 11 and the plate thickness range is 5-10mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
