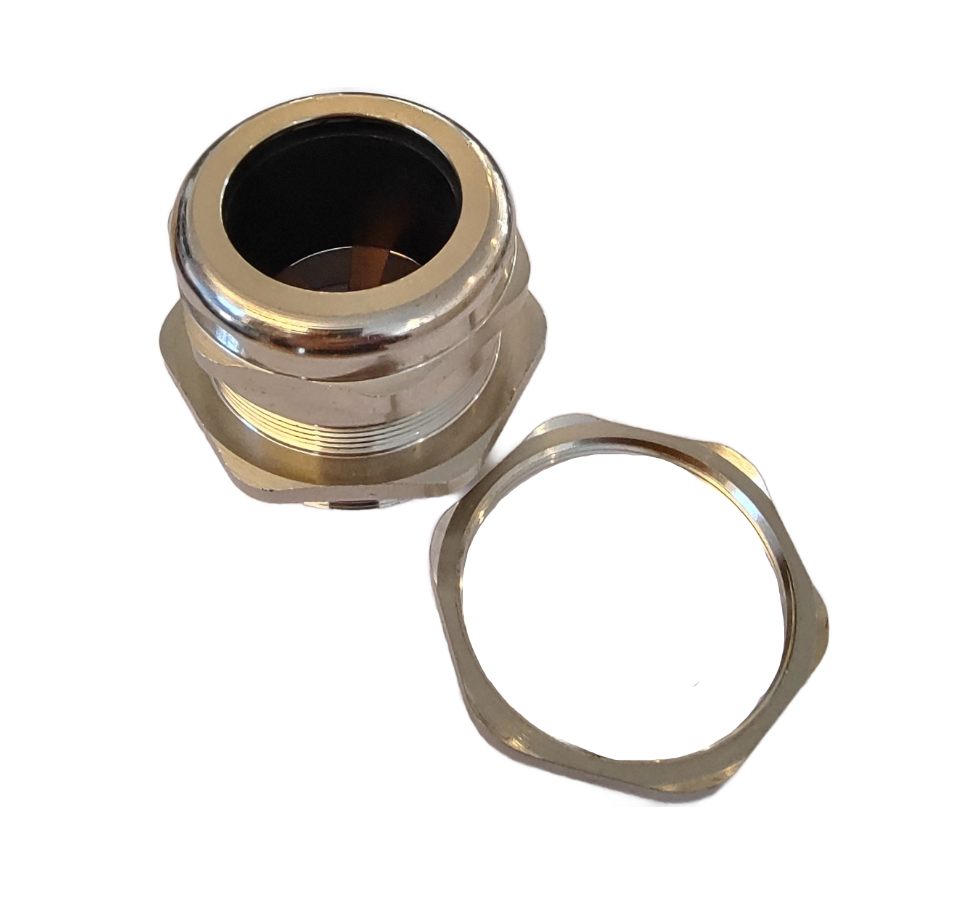

Cable gland, EMC, earthnut, PG 13,5, cable diameter=6-12mm
MT109866
Cable gland manufactured in brass with earthnut. The thread size is PG 13,5 and the plate thickness range is 6-12mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
Yes
Tread size
PG 13,5
Insert material
Polyamide
Clamping ring material
NBR
Material type
Brass
Mounting type
Earthnut

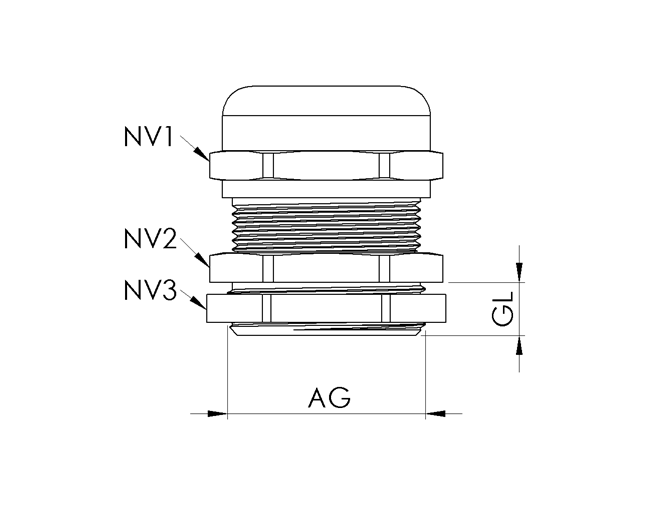

NV2
22
NV3
22
O-ring material
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Wrench
22
TÜV
Yes
IP Code
IP68
Thread length in mm
8
Internal height in mm
0
Cable diameter, min.
6
Cable diameter, max.
12
Nettovægt
0.035
Varekode
7419999099
Lande-/områdekode for oprindelse
CN
Long description
Cable gland manufactured in brass with earthnut. The thread size is PG 13,5 and the plate thickness range is 6-12mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
