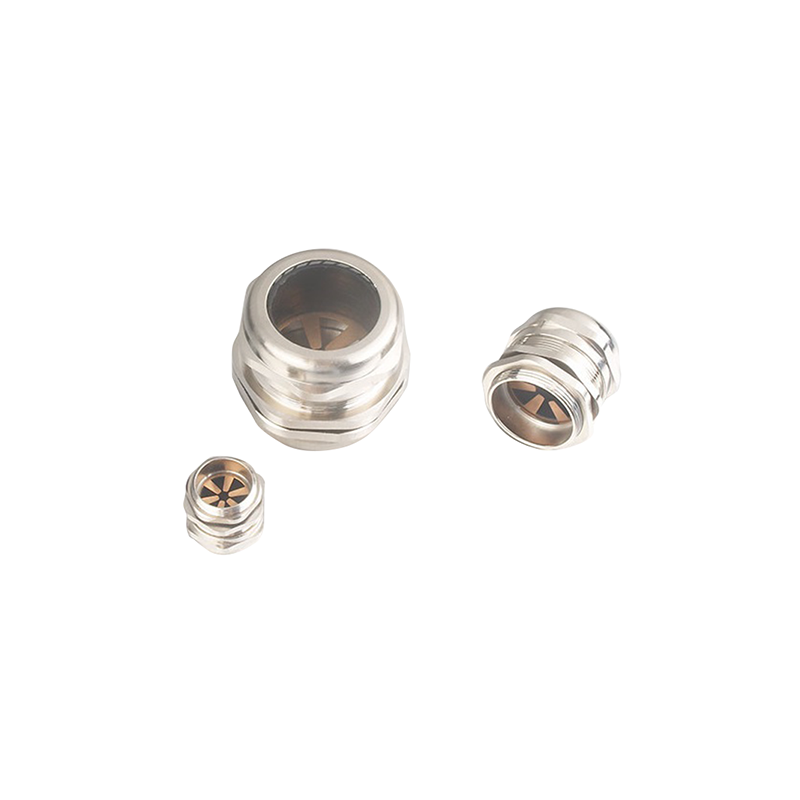

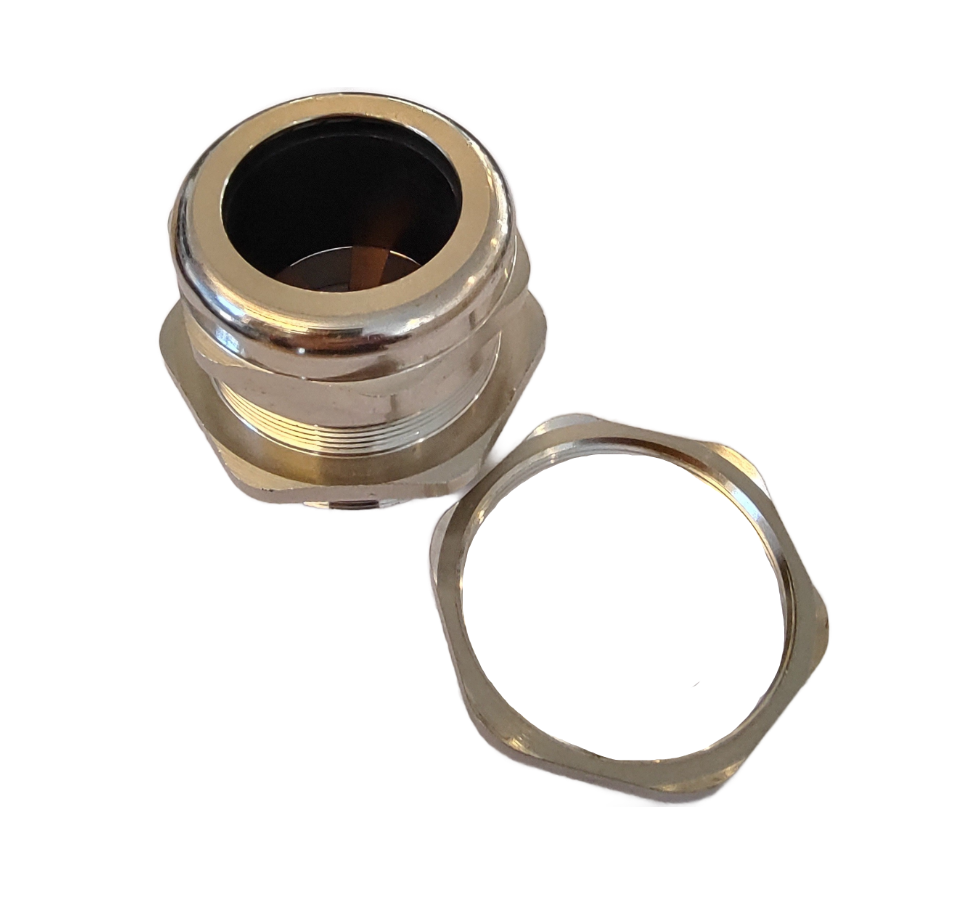

Cable gland, EMC, earthnut, PG 7, cable diameter=3-6,5mm
MT109863
Cable gland manufactured in brass with earthnut. The thread size is PG 7 and the plate thickness range is 3-6,5mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
Yes
Tread size
PG 7
Indsatsmateriale
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Earthnut

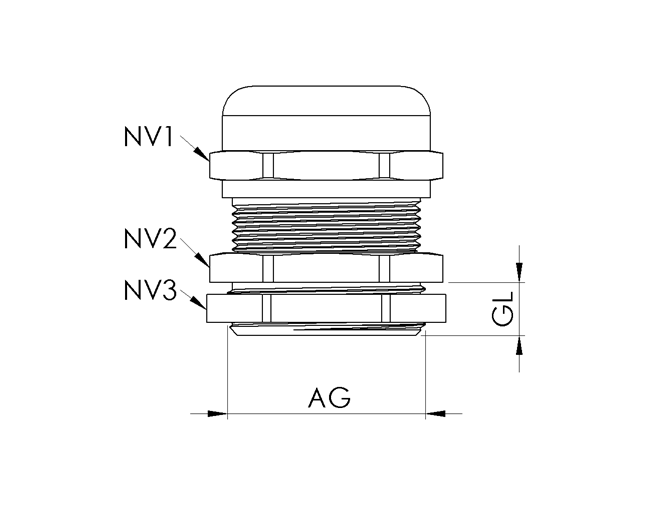

NV2
14
NV3
14
O-ring materiale
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Skruenøgle
14
TÜV
Yes
IP Code
IP68
Gevindlængde i mm
7
Indvendig højde i mm
0
Cable diameter, min.
3
Cable diameter, max.
6.5
Net Weight (Kg)
0.013
HS Code
8536901000
Country of Origin
CN
Long description
Cable gland manufactured in brass with earthnut. The thread size is PG 7 and the plate thickness range is 3-6,5mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
