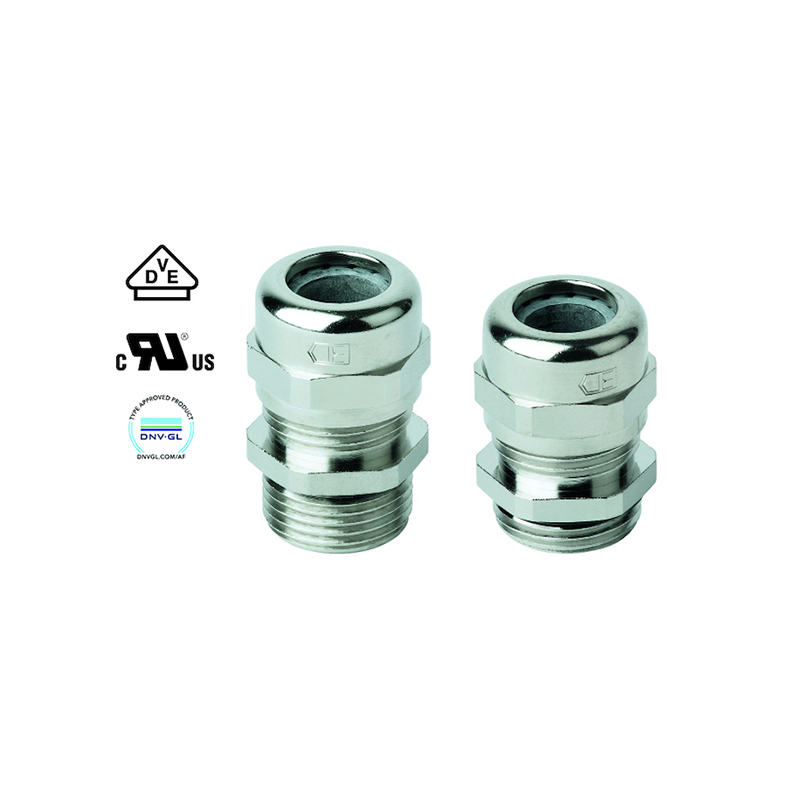

Cable gland, EMC, nut, M16x1,5, cable diameter=5-9mm
MT106369
Cable gland manufactured in brass with nut. The thread size is M16x1,5 and the plate thickness range is 5-9mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Fire retardant
UL 94-V2
EMC
Yes
Tread size
M16x1,5
Indsatsmateriale
Polyamide
Clamping ring material
Neoprene+NBR
Material type
Brass
Mounting type
Nut
O-ring materiale
NBR
Surface finish
Nickel-plated
Skruenøgle
17
IP Code
IP69K
VDE
Yes
Gevindlængde i mm
10
Hole diameter in mm
0
Cable diameter, min.
5
Cable diameter, max.
9
Plate thickness, min.
0
Plate thickness, max.
0
Long description
Cable gland manufactured in brass with nut. The thread size is M16x1,5 and the plate thickness range is 5-9mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
