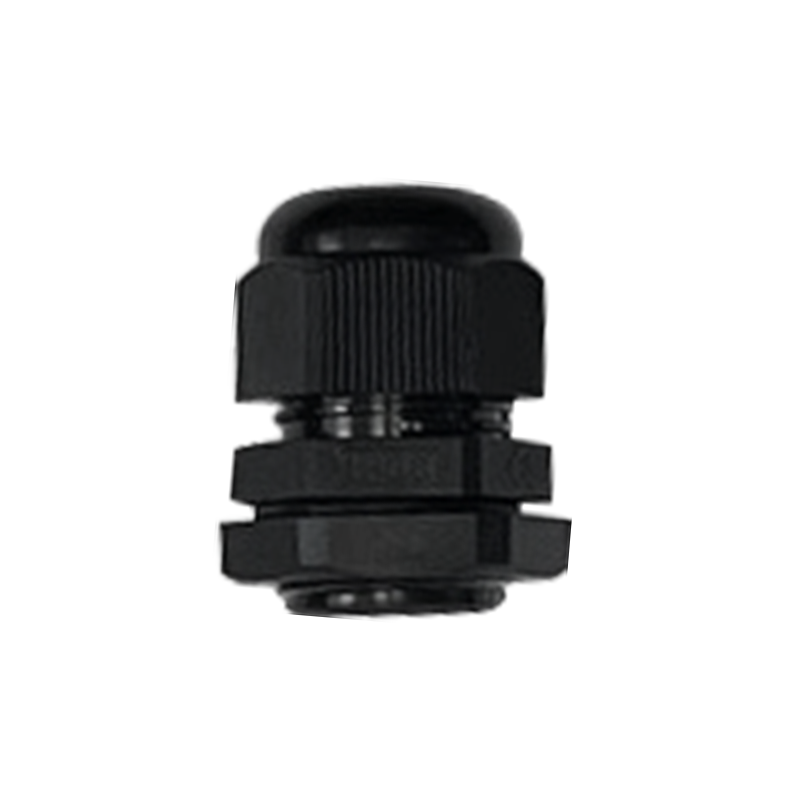

Cable gland, nut, M20x1,5, cable diameter=6-12mm
MT111600
Cable gland manufactured in polyamide with nut. The thread size is M20x1,5 and the plate thickness range is 6-12mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Black
Colour code
RAL 9005
Tread size
M20x1,5
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
24
NV3
27
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
24
TÜV
No
IP Code
IP68

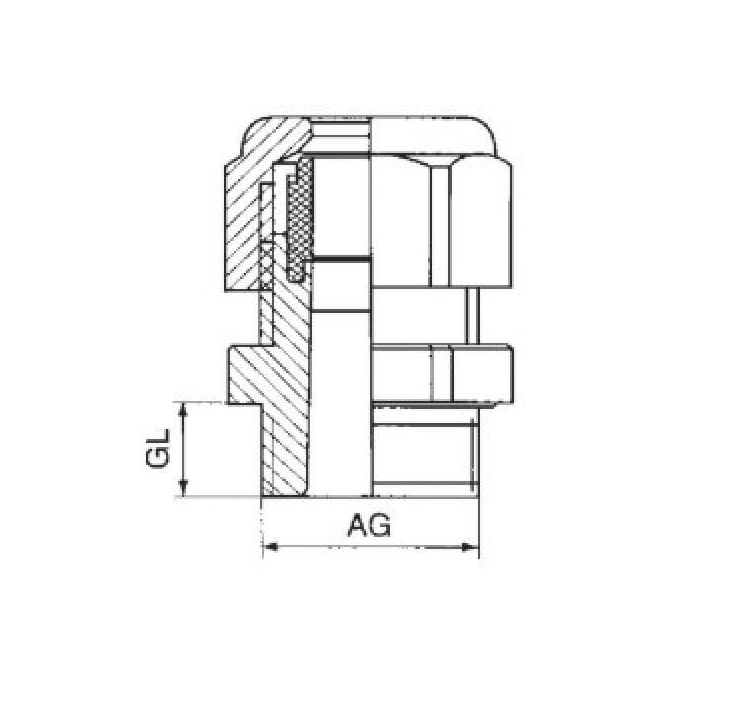

Thread length in mm
9
Cable diameter, min.
6
Cable diameter, max.
12
Long description
Cable gland manufactured in polyamide with nut. The thread size is M20x1,5 and the plate thickness range is 6-12mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
