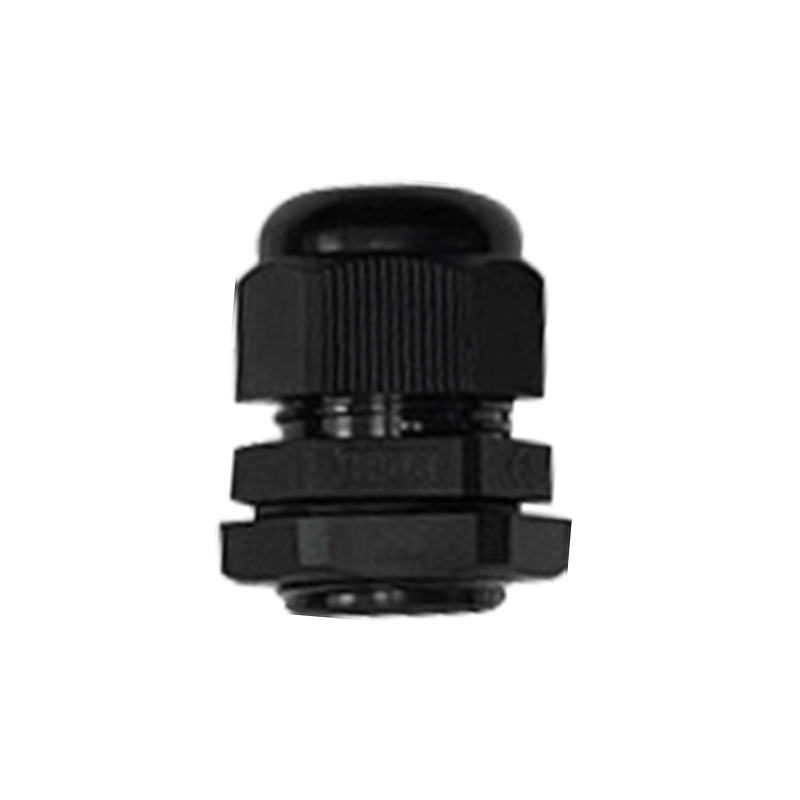

Cable gland, nut, M25x1,5, cable diameter=12-16mm
MT111601
Cable gland manufactured in polyamide with nut. The thread size is M25x1,5 and the plate thickness range is 12-16mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Black
Colour code
RAL 9005
Tread size
M25x1,5
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
28
NV3
33
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
28
TÜV
No
IP Code
IP68

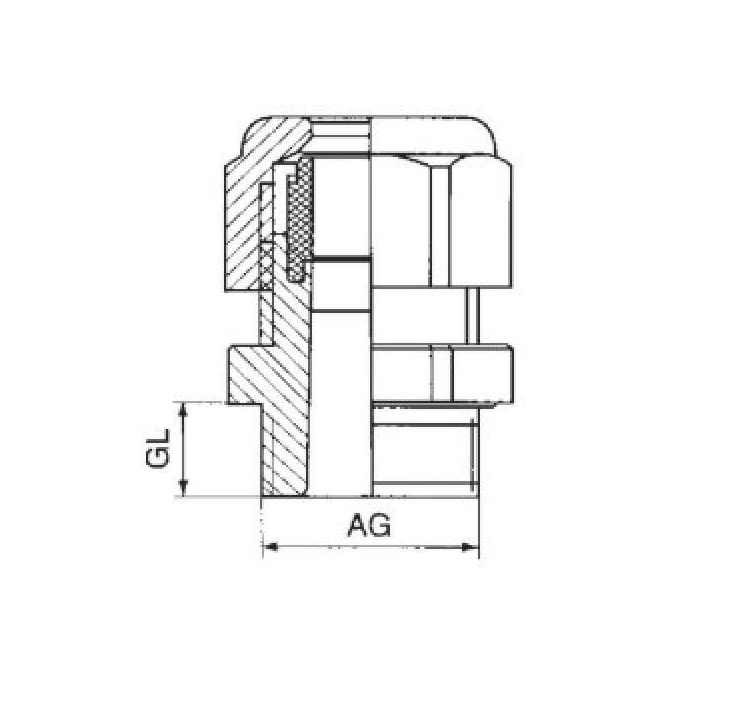

Thread length in mm
10
Cable diameter, min.
12
Cable diameter, max.
16
Long description
Cable gland manufactured in polyamide with nut. The thread size is M25x1,5 and the plate thickness range is 12-16mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Product data
