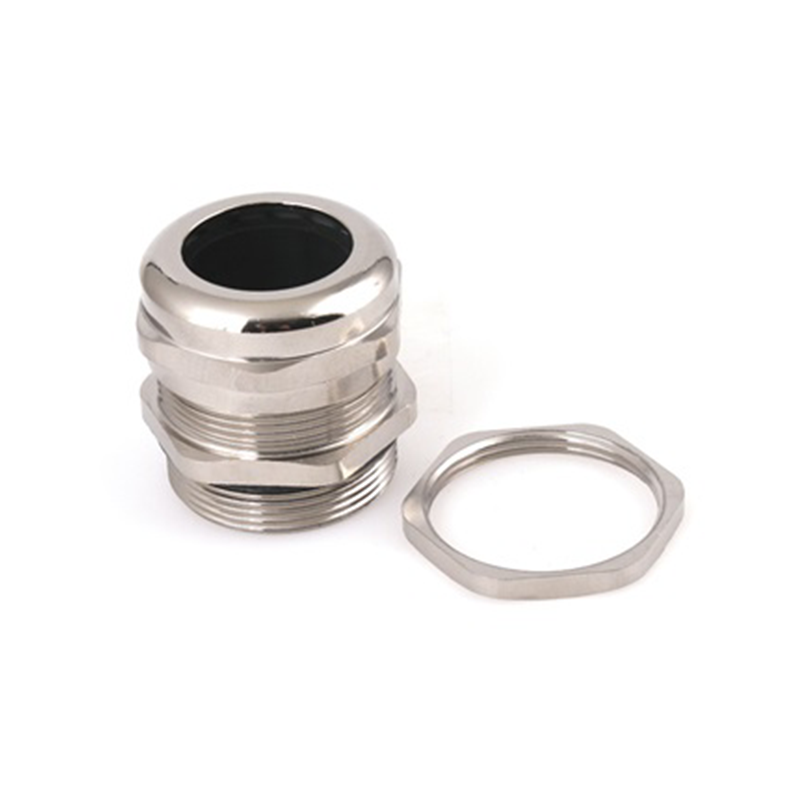

Cable gland, nut, M40x1,5, cable diameter=18-25mm
MT109881
Cable gland manufactured in brass with nut. The thread size is M40x1,5 and the plate thickness range is 18-25mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Tread size
M40x1,5
Indsatsmateriale
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Nut
NV2
45
NV3
45
O-ring materiale
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Skruenøgle
40
TÜV
Yes
IP Code
IP68
Gevindlængde i mm
11
Hole diameter in mm
0
Indvendig højde i mm
0
Cable diameter, min.
18
Cable diameter, max.
25
Plate thickness, min.
0
Plate thickness, max.
0
Long description
Cable gland manufactured in brass with nut. The thread size is M40x1,5 and the plate thickness range is 18-25mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
