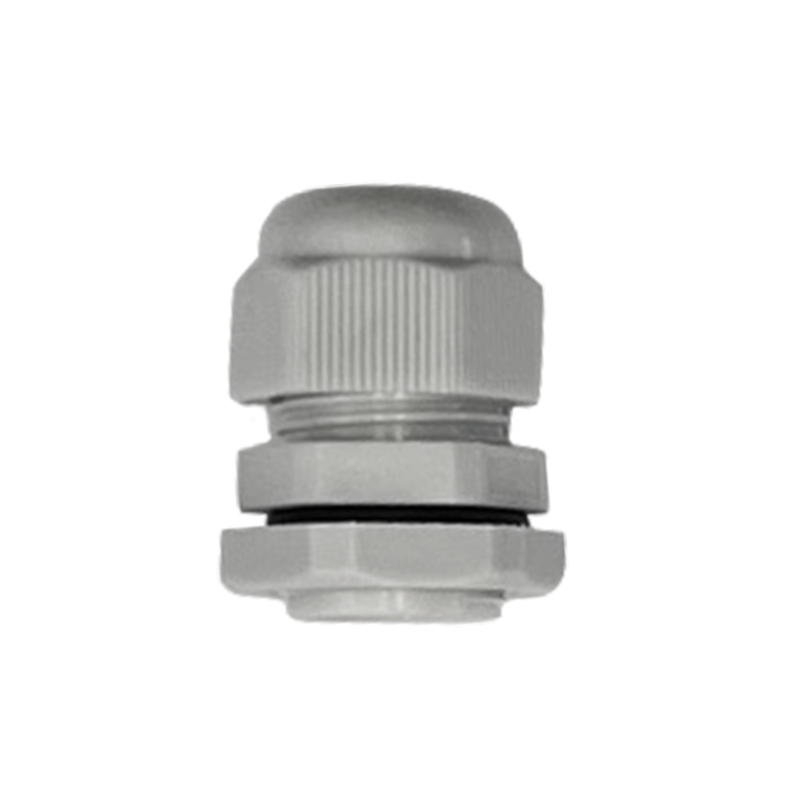

Cable gland, nut, M40x1,5, cable diameter=22-32mm
MT109907
Cable gland manufactured in polyamide with nut. The thread size is M40x1,5 and the plate thickness range is 22-32mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Light grey
Farvekode
RAL 9002

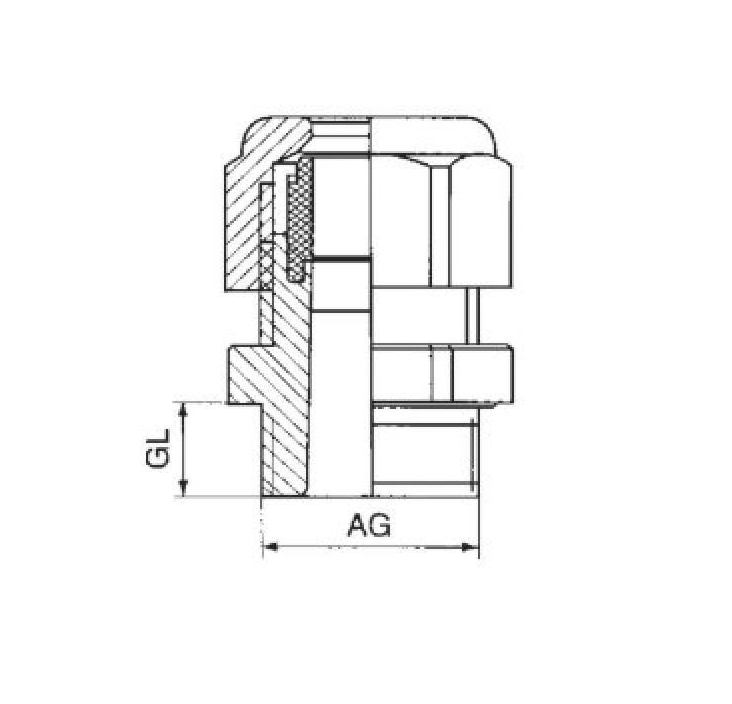

Tread size
M40x1,5
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
52
NV3
52
O-ring materiale
NBR
REACH
Yes
RoHS
Yes
Skruenøgle
52
TÜV
No
IP Code
IP68
Gevindlængde i mm
17
Hole diameter in mm
0
Cable diameter, min.
22
Cable diameter, max.
32
Plate thickness, min.
0
Plate thickness, max.
0
Long description
Cable gland manufactured in polyamide with nut. The thread size is M40x1,5 and the plate thickness range is 22-32mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
