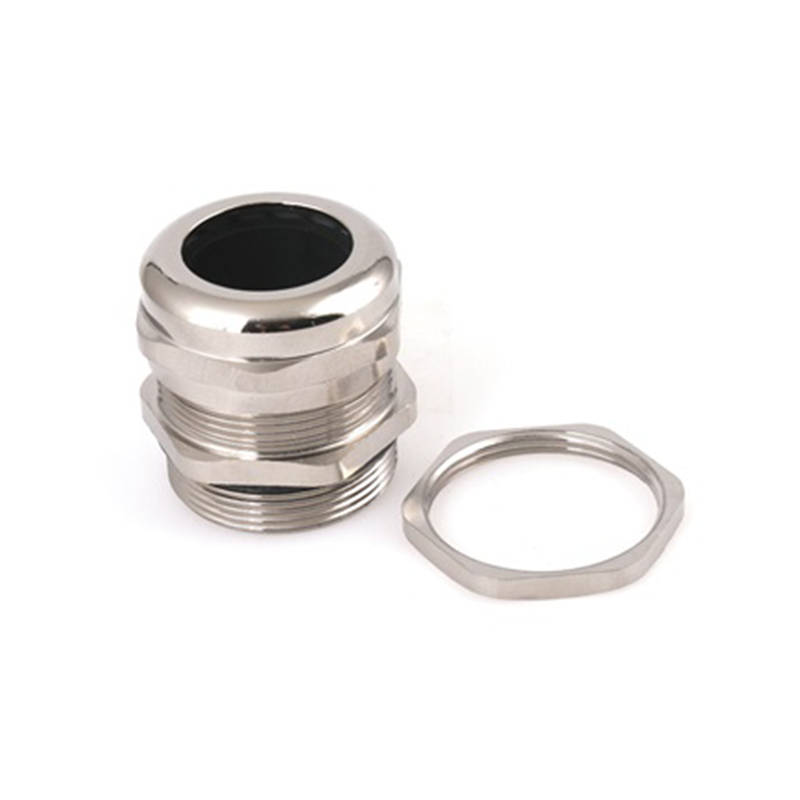

Cable gland, nut, M63x1,5, cable diameter=37-44mm
MT109883
Cable gland manufactured in brass with nut. The thread size is M63x1,5 and the plate thickness range is 37-44mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Tread size
M63x1,5
Insert material
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Nut

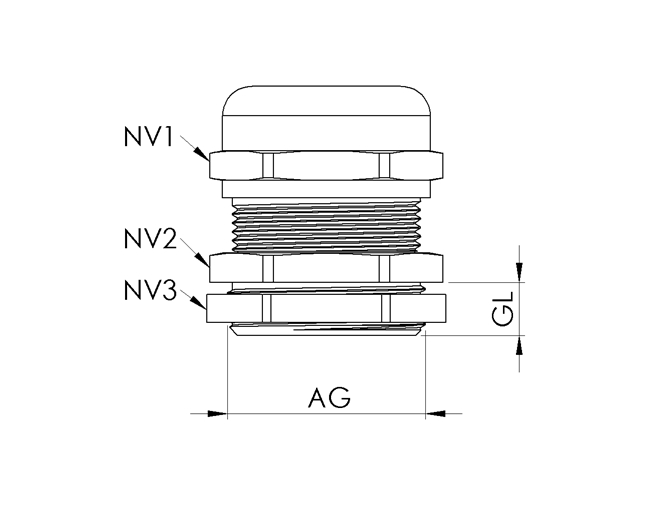

NV2
68
NV3
68
O-ring material
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Wrench
64
TÜV
Yes
IP Code
IP68
Thread length in mm
13
Hole diameter in mm
0
Internal height in mm
0
Cable diameter, min.
37
Cable diameter, max.
44
Plate thickness min.
0
Plate thickness max.
0
Long description
Cable gland manufactured in brass with nut. The thread size is M63x1,5 and the plate thickness range is 37-44mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
