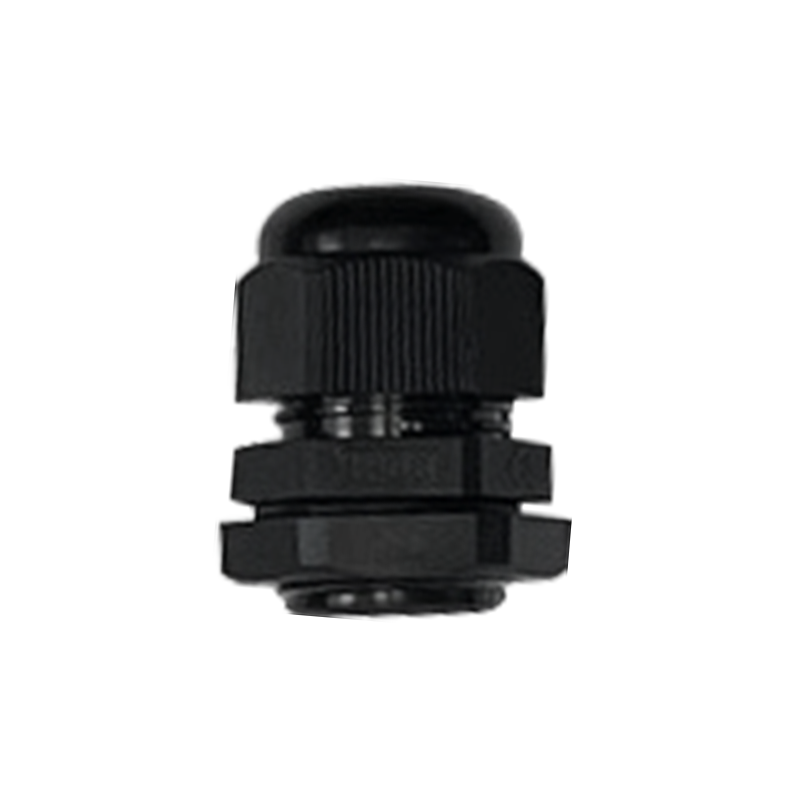

Cable gland, nut, M63x1,5, cable diameter=37-44mm
MT111605
Cable gland manufactured in polyamide with nut. The thread size is M63x1,5 and the plate thickness range is 37-44mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Black
Farvekode
RAL 9005
Tread size
M63x1,5
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
68
NV3
74
O-ring materiale
NBR
REACH
Yes
RoHS
Yes
Skruenøgle
68
TÜV
No
IP Code
IP68
Gevindlængde i mm
18
Cable diameter, min.
37
Cable diameter, max.
44
Net Weight (Kg)
0.12
HS Code
3917400000
Country of Origin
CN
Long description
Cable gland manufactured in polyamide with nut. The thread size is M63x1,5 and the plate thickness range is 37-44mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
