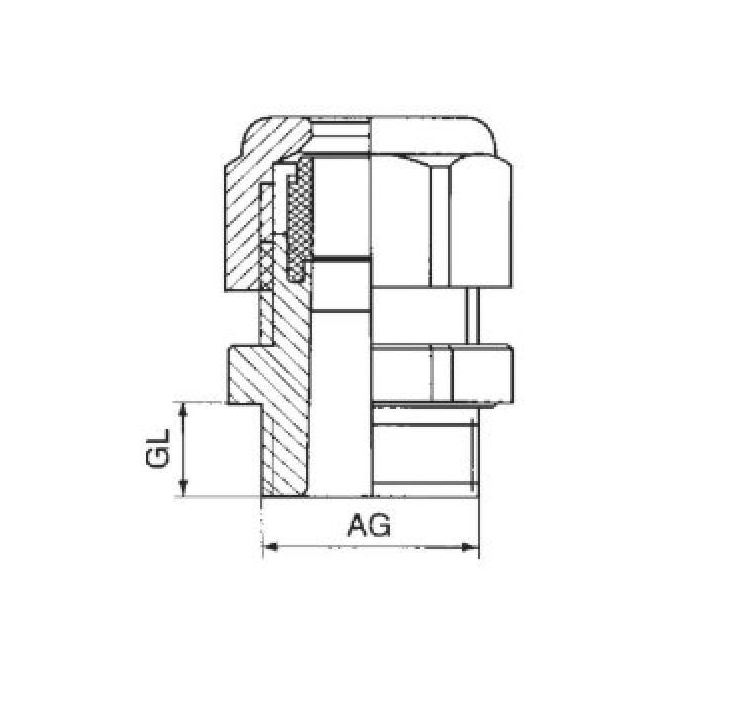

Cable gland, nut, PG 29, cable diameter=18-25mm
MT109916
Cable gland manufactured in polyamide with nut. The thread size is PG 29 and the plate thickness range is 18-25mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Light grey
Colour code
RAL 9002
Tread size
PG 29
Clamping ring material
NBR
Components
Cable gland
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
42
NV3
45
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
42
TÜV
No
IP Code
IP68
Thread length in mm
12
Hole diameter in mm
0
Cable diameter, min.
18
Cable diameter, max.
25
Plate thickness min.
0
Plate thickness max.
0
Long description
Cable gland manufactured in polyamide with nut. The thread size is PG 29 and the plate thickness range is 18-25mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
