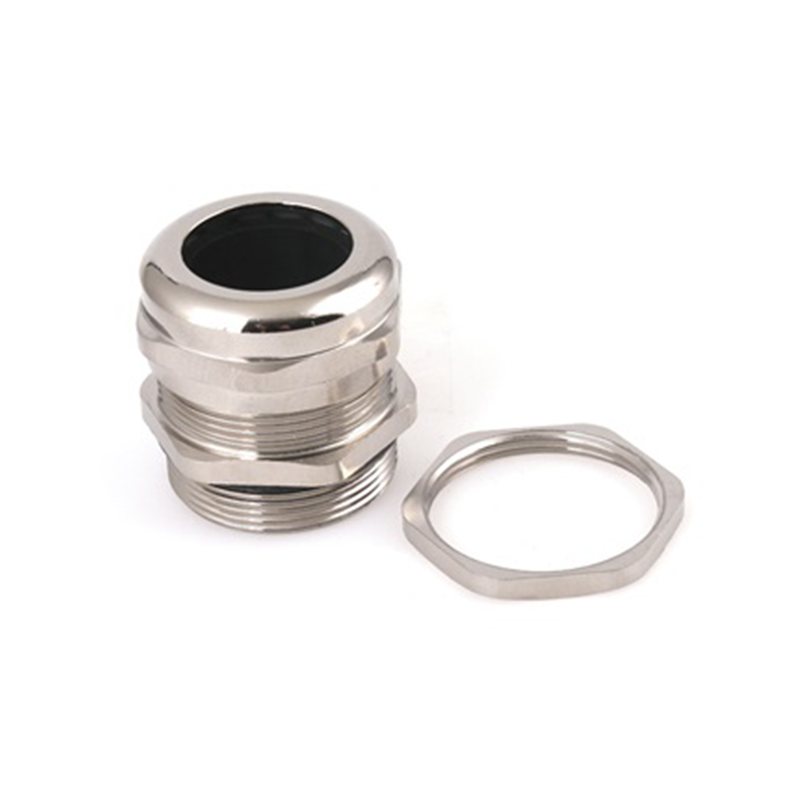

Cable gland, nut, PG 36, cable diameter=25-33mm
MT109892
Cable gland manufactured in brass with nut. The thread size is PG 36 and the plate thickness range is 25-33mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Tread size
PG 36
Insert material
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Nut
NV2
50
NV3
50
O-ring material
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Wrench
50
TÜV
Yes
IP Code
IP68
Thread length in mm
12
Internal height in mm
0
Cable diameter, min.
25
Cable diameter, max.
33
Long description
Cable gland manufactured in brass with nut. The thread size is PG 36 and the plate thickness range is 25-33mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
