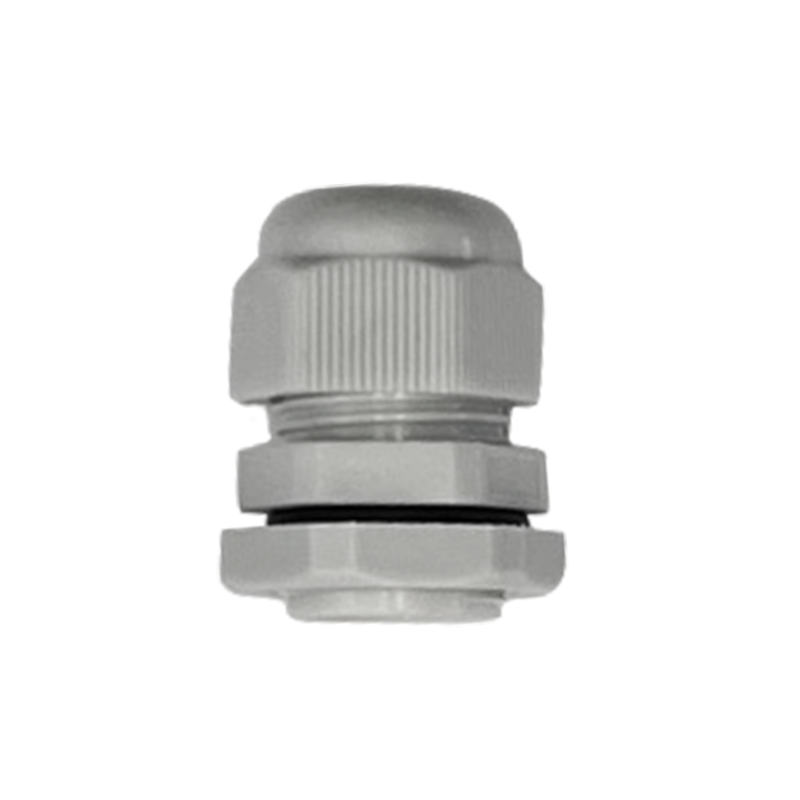

Cable gland, nut, PG 42, cable diameter=32-38mm
MT109918
Cable gland manufactured in polyamide with nut. The thread size is PG 42 and the plate thickness range is 32-38mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Light grey
Farvekode
RAL 9002
Tread size
PG 42
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
61
NV3
65
O-ring materiale
NBR
REACH
Yes
RoHS
Yes
Skruenøgle
60
TÜV
No
IP Code
IP68
Gevindlængde i mm
18
Hole diameter in mm
0
Cable diameter, min.
32
Cable diameter, max.
38
Plate thickness, min.
0
Plate thickness, max.
0
Long description
Cable gland manufactured in polyamide with nut. The thread size is PG 42 and the plate thickness range is 32-38mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
