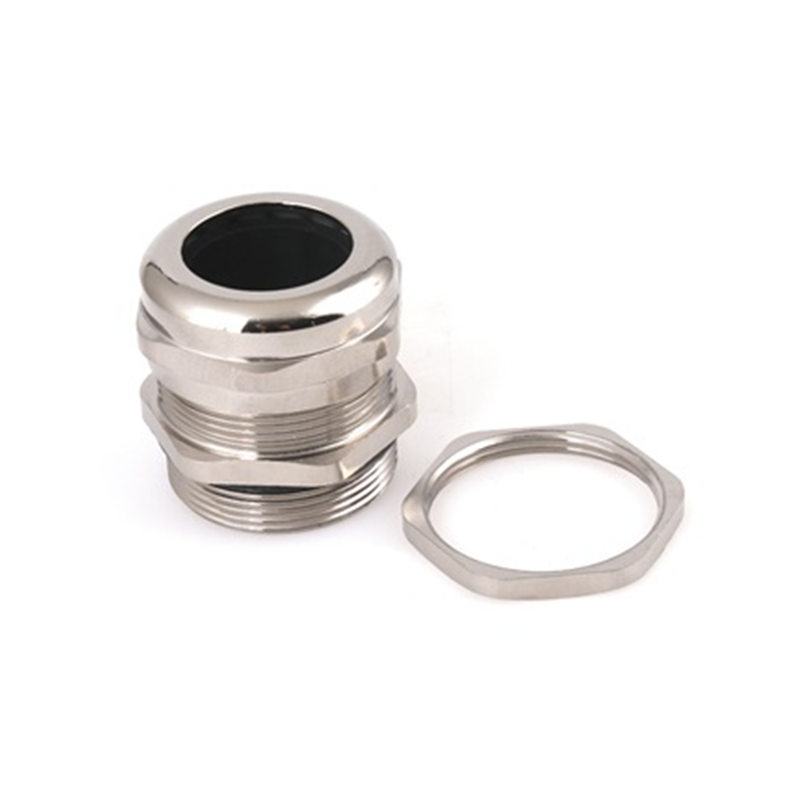

Cable gland, nut, PG 9, cable diameter=4-8mm
MT109886
Cable gland manufactured in brass with nut. The thread size is PG 9 and the plate thickness range is 4-8mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Tread size
PG 9
Indsatsmateriale
Polyamide
Clamping ring material
NBR
Components
Cable gland
Material type
Brass
Mounting type
Nut

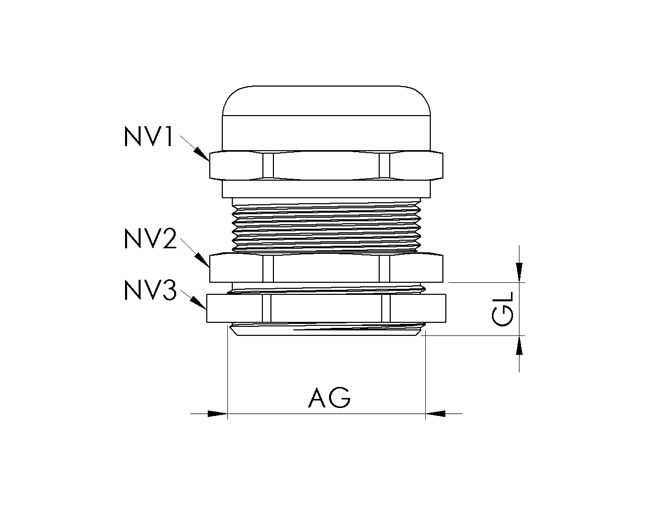

NV2
18
NV3
18
O-ring materiale
NBR
Surface finish
Nickel-plated
REACH
Yes
RoHS
Yes
Skruenøgle
18
TÜV
Yes
IP Code
IP68
Gevindlængde i mm
8
Hole diameter in mm
0
Indvendig højde i mm
0
Cable diameter, min.
4
Cable diameter, max.
8
Plate thickness, min.
0
Plate thickness, max.
0
Net Weight (Kg)
0.025
HS Code
8536901000
Country of Origin
CN
Long description
Cable gland manufactured in brass with nut. The thread size is PG 9 and the plate thickness range is 4-8mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
