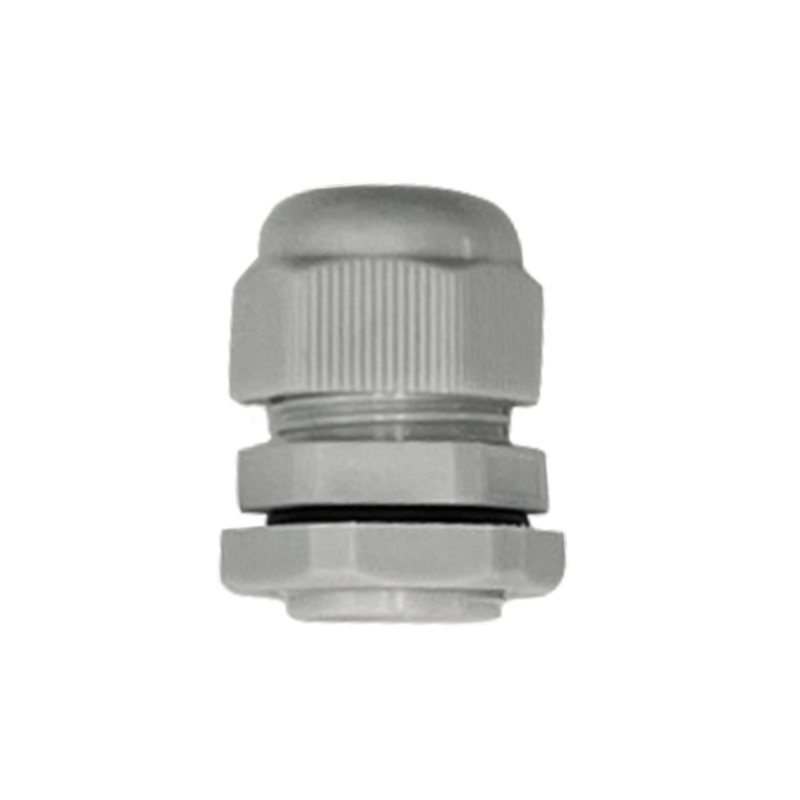

Cable gland, nut, PG 9, cable diameter=4-8mm
MT109911
Cable gland manufactured in polyamide with nut. The thread size is PG 9 and the plate thickness range is 4-8mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
Other approvals
PVC and halogen-free
CE
Yes
EMC
No
Colour
Light grey
Colour code
RAL 9002
Tread size
PG 9
Clamping ring material
NBR
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV2
19
NV3
22
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
19
TÜV
No
IP Code
IP68
Thread length in mm
9
Hole diameter in mm
0
Cable diameter, min.
4
Cable diameter, max.
8
Plate thickness min.
0
Plate thickness max.
0
Long description
Cable gland manufactured in polyamide with nut. The thread size is PG 9 and the plate thickness range is 4-8mm. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail og phone.
