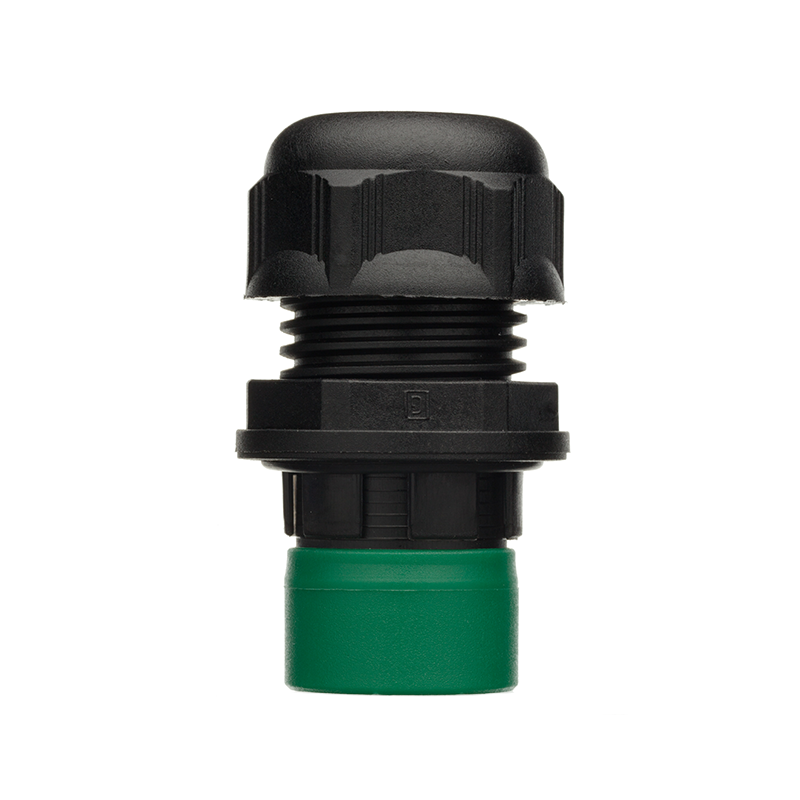

Cable gland, quick mounting, M12, cable diameter=4-6,5mm
MT105754
Cable gland manufactured in glass fiber reinforced polyamide with quick mounting. The thread size is M12 and the plate thickness range is 4-6,5mm. Equivalent to a regular cable gland with M12 thread. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Fire retardant
UL 94-V2
EMC
No
Colour
Black
Farvekode
RAL 9005
Tread size
M12
Clamping ring material
Neoprene
Components
Cable gland
Material
PA6
Material type
Glass fiber reinforced polyamide
Mounting type
Quick mounting
O-ring materiale
NBR
RoHS
Yes
Tolerance hole diameter
±3
IP Code
IP68
VDE
Yes
Gevindlængde i mm
0
Hole diameter in mm
12.4
Cable diameter, min.
4
Cable diameter, max.
6.5
Plate thickness, min.
1
Plate thickness, max.
2.5
Long description
Cable gland manufactured in glass fiber reinforced polyamide with quick mounting. The thread size is M12 and the plate thickness range is 4-6,5mm. Equivalent to a regular cable gland with M12 thread. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
