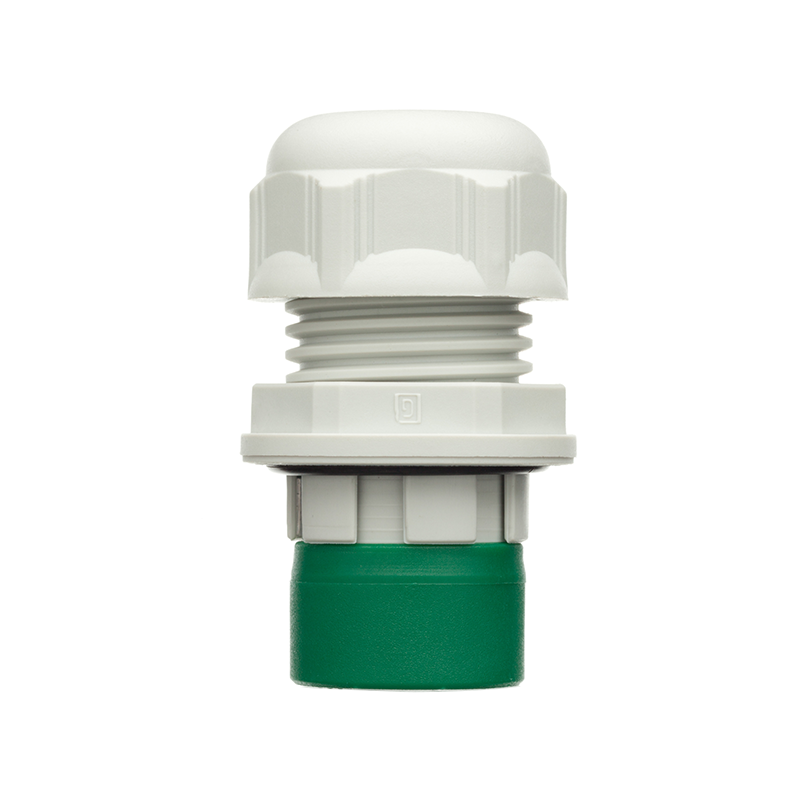

Cable gland, quick mounting, M25, cable diameter=11-16mm
MT105749

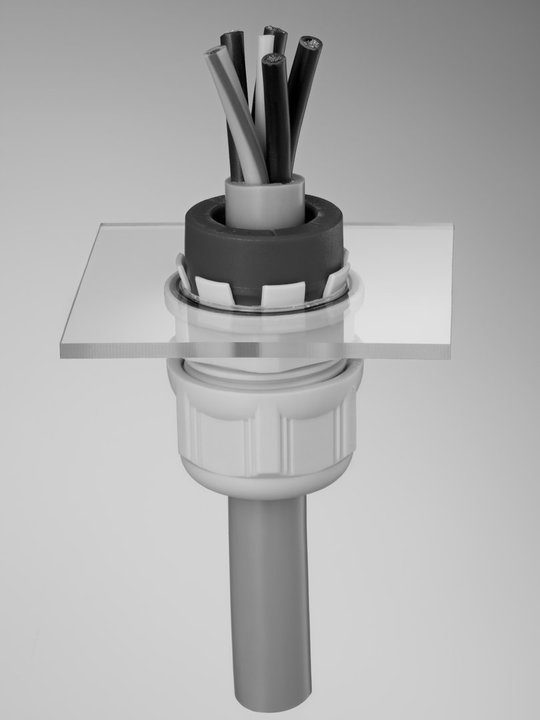

Cable gland manufactured in glass fiber reinforced polyamide with quick mounting. The thread size is M25 and the plate thickness range is 11-16mm. Equivalent to a regular cable gland with M25 thread. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
Fire retardant
UL 94-V2
EMC
No
Colour
Light grey
Colour code
RAL 7035
Tread size
M25
Clamping ring material
Neoprene
Components
Cable gland
Material
PA6
Material type
Glass fiber reinforced polyamide
Mounting type
Quick mounting
O-ring material
NBR
RoHS
Yes
Tolerance hole diameter
±3
IP Code
IP68
VDE
Yes
Thread length in mm
0
Hole diameter in mm
25.4
Cable diameter, min.
11
Cable diameter, max.
16
Plate thickness min.
2.5
Plate thickness max.
4
Long description
Cable gland manufactured in glass fiber reinforced polyamide with quick mounting. The thread size is M25 and the plate thickness range is 11-16mm. Equivalent to a regular cable gland with M25 thread. We offer many different products and variants, so if you cannot find what you are looking for then please contact us by mail and phone.
