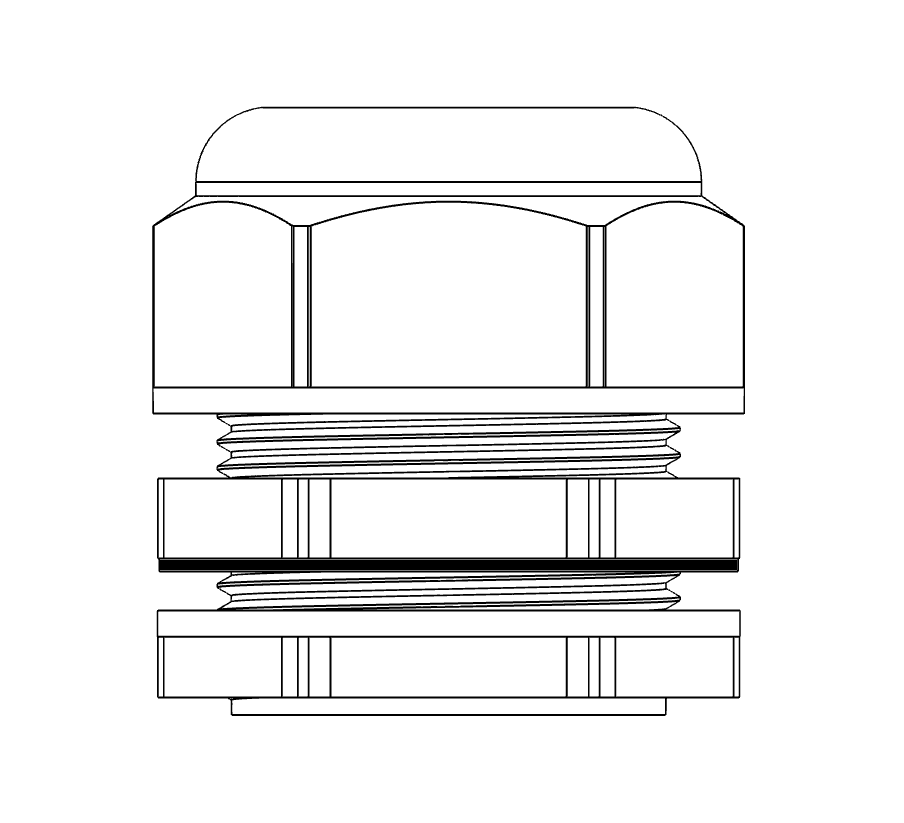

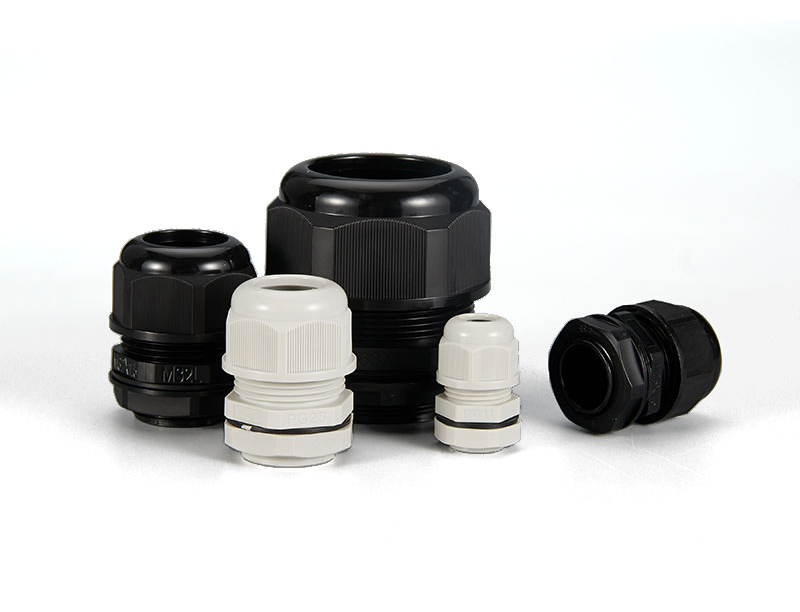

Cable gland, UV-resistant, M16X1,5, cable diameter=4-8mm
MT113676
Cable gland manufactured with UV-resistant polyamide and M16X1,5 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 4-8mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
CE
Yes
Colour
Black
Colour code
RAL 9005
Clamping ring material
NBR
Components
Cable gland
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV3
22
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
19
IP Code
IP68
UV-resistant
Ja
Thread length in mm
9
Cable diameter, min.
4
Cable diameter, max.
8
Long description
Cable gland manufactured with UV-resistant polyamide and M16X1,5 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 4-8mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
