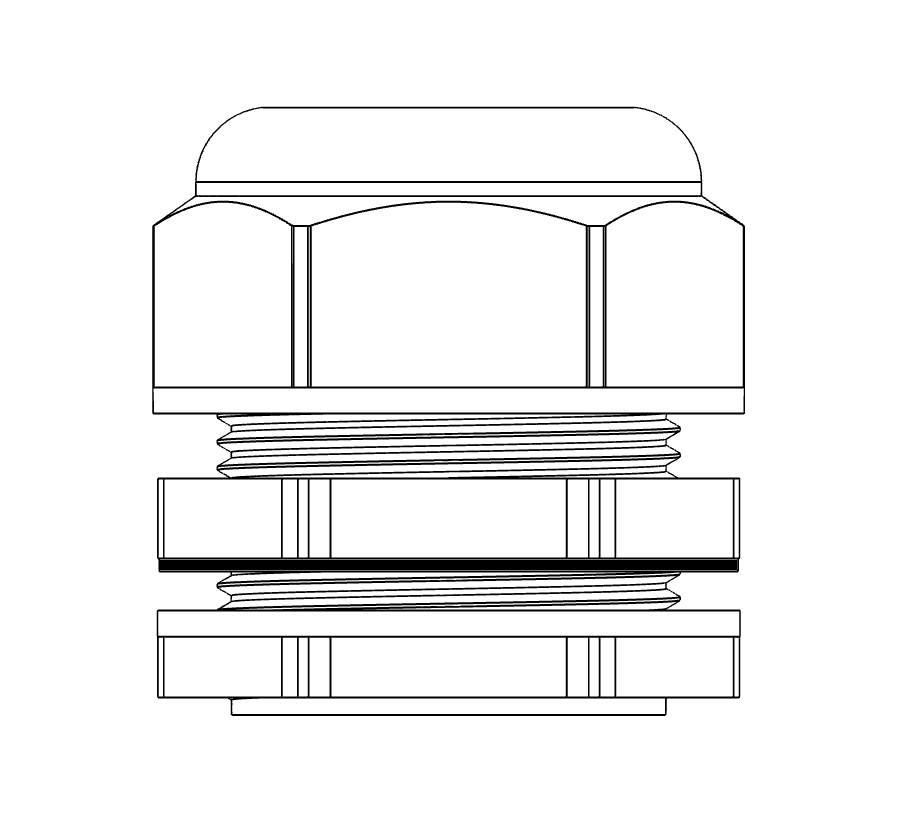

Cable gland, UV-resistant, M50X1,5, cable diameter=31-39mm
MT113673
Cable gland manufactured with UV-resistant polyamide and M50X1,5 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 31-39mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
CE
Yes
Colour
Grey
Colour code
RAL 7035
Clamping ring material
NBR
Components
Cable gland
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV3
60
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
62
IP Code
IP68
UV-resistant
Ja
Thread length in mm
20
Cable diameter, min.
31
Cable diameter, max.
39
Long description
Cable gland manufactured with UV-resistant polyamide and M50X1,5 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 31-39mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
