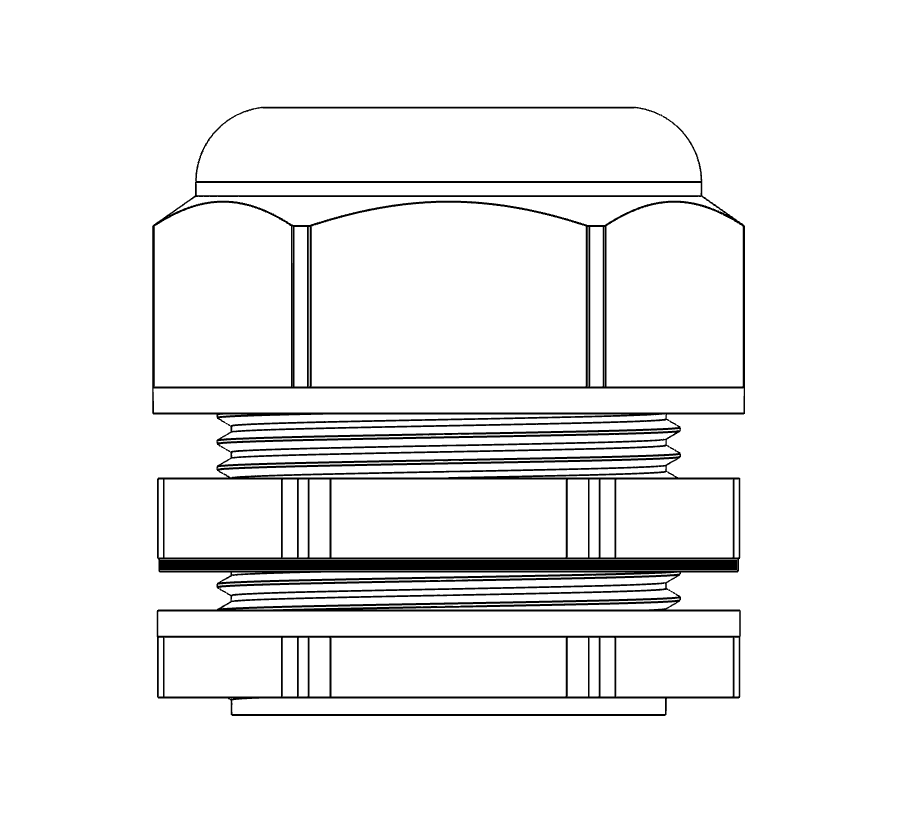

Cable gland, UV-resistant, PG 36, cable diameter=24-31mm
MT113690
Cable gland manufactured with UV-resistant polyamide and PG 36 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 24-31mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
CE
Yes
Colour
Grey
Farvekode
RAL 7035
Tread size
PG 36
Clamping ring material
NBR
Components
Cable gland
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV3
56
O-ring materiale
NBR
REACH
Yes
RoHS
Yes
Skruenøgle
52
IP Code
IP68
UV-resistant
Ja
Gevindlængde i mm
15
Cable diameter, min.
24
Cable diameter, max.
31
Long description
Cable gland manufactured with UV-resistant polyamide and PG 36 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 24-31mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
