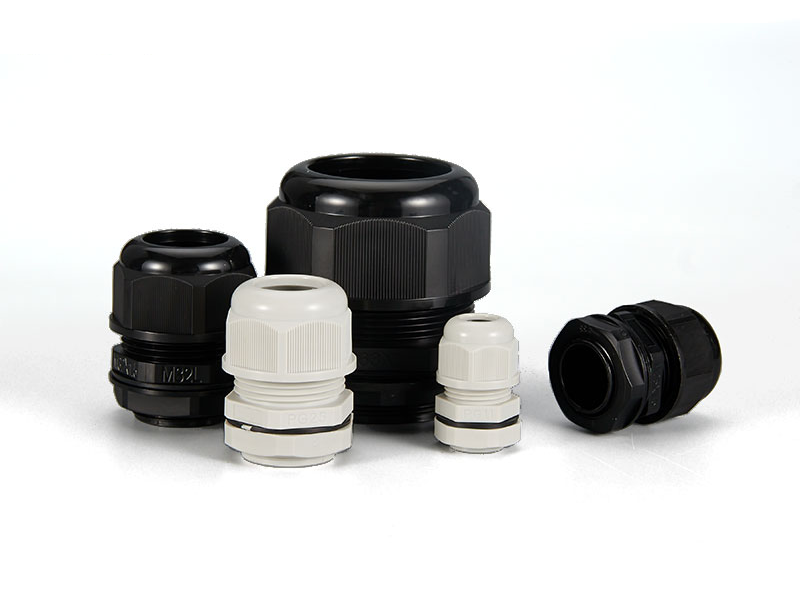

Cable gland, UV-resistant, PG 7, cable diameter=3-6,5mm
MT113693
Cable gland manufactured with UV-resistant polyamide and PG 7 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 3-6,5mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
CE
Yes
Colour
Black
Colour code
RAL 9005
Tread size
PG 7
Clamping ring material
NBR
Components
Cable gland
Material
PA66
Material type
Polyamide
Mounting type
Nut
NV3
17
O-ring material
NBR
REACH
Yes
RoHS
Yes
Wrench
16
IP Code
IP68
UV-resistant
Ja
Thread length in mm
8
Cable diameter, min.
3
Cable diameter, max.
6.5
Long description
Cable gland manufactured with UV-resistant polyamide and PG 7 thread size. The strong clamping force can hold the cable firmly and grips cable diameters from 3-6,5mm. Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents. Suitable for operating temperatures from –40°C to +100°C in static and from –20°C to +80°C in dynamic applications, for both indoor and outdoor use. We offer many different products and variants, so if you cannot find what you are looking for, please contact us.
