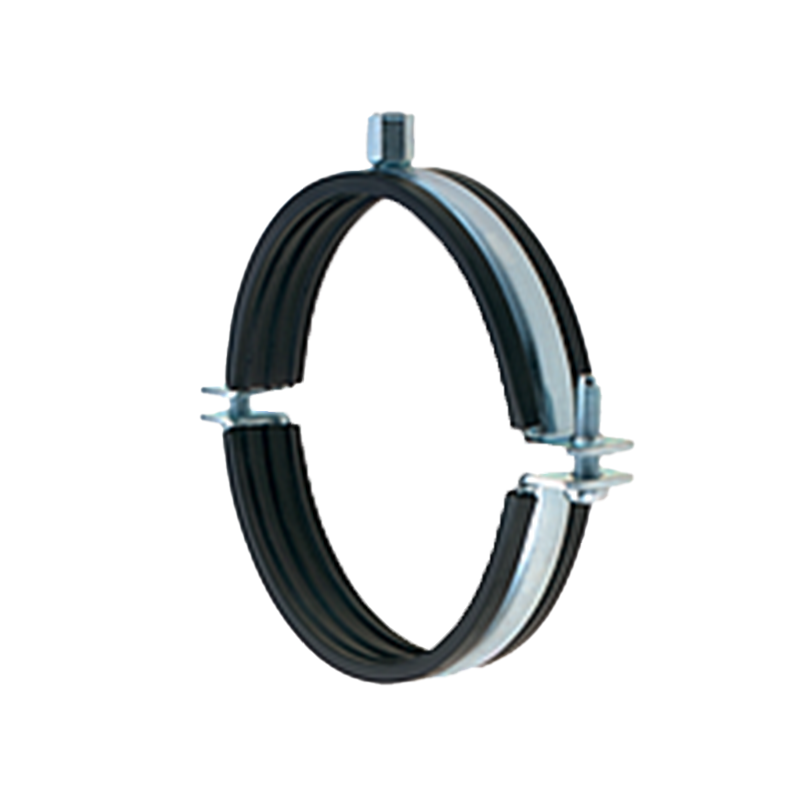

Pipe clamp with rubber inlay, steel, diameter range: 12-15mm
MT110779
Pipe clamp with rubber inlay manufactured in steel. The width is mm and the diameter range is 12-15mm. Usable temperature of rubber inlay range from –50°C to +110 °C.
Equipped with M6 crosshead fastening screws. We offer many different products and varients so please contact us if you cannot find a product to meet your requirements.
Equipped with M6 crosshead fastening screws. We offer many different products and varients so please contact us if you cannot find a product to meet your requirements.

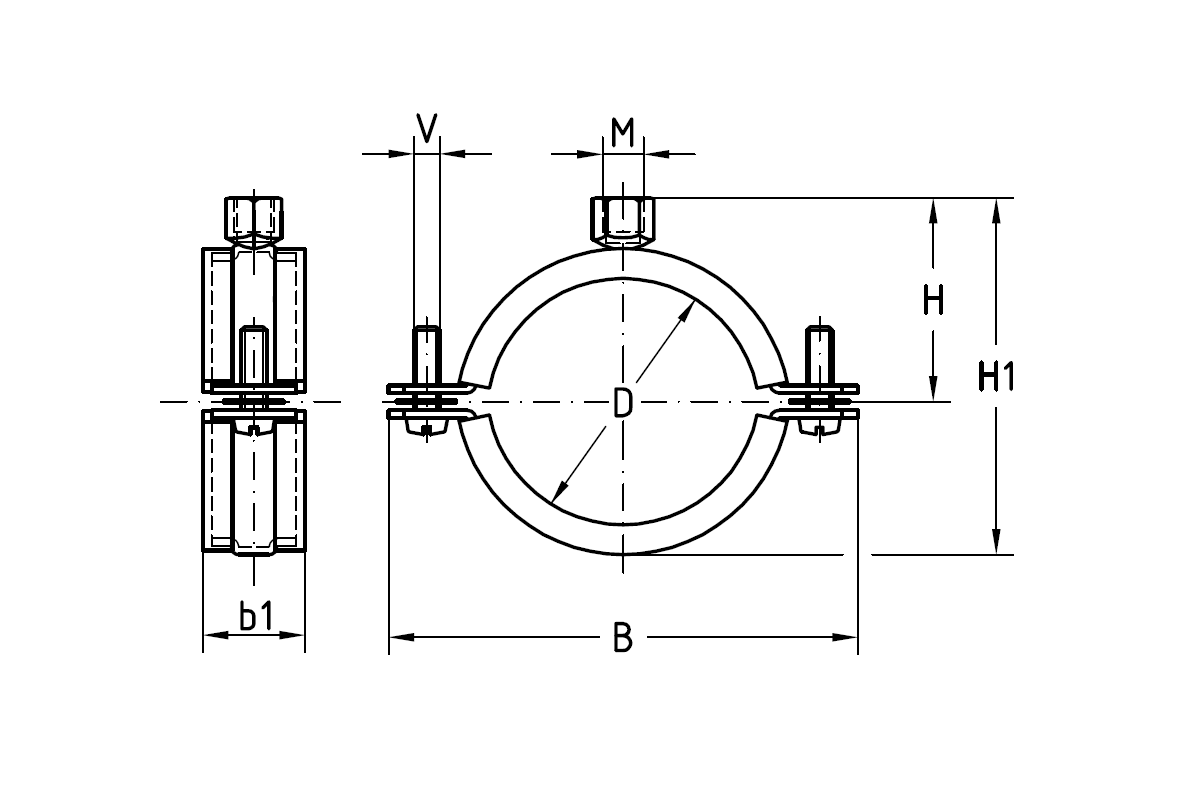

B
48,5
Rubber material
EPDM
H
28,5
H1
40
female tread size
M8
Material type
Steel
Surface finish
Electro zinc plated
Type
With rubber inlay
Hole diameter in mm
0
Maksimum belastning i kg
87
Thickness in mm
0
Long description
Pipe clamp with rubber inlay manufactured in steel. The width is mm and the diameter range is 12-15mm. Usable temperature of rubber inlay range from –50°C to +110 °C.
Equipped with M6 crosshead fastening screws. We offer many different products and varients so please contact us if you cannot find a product to meet your requirements.
Equipped with M6 crosshead fastening screws. We offer many different products and varients so please contact us if you cannot find a product to meet your requirements.
