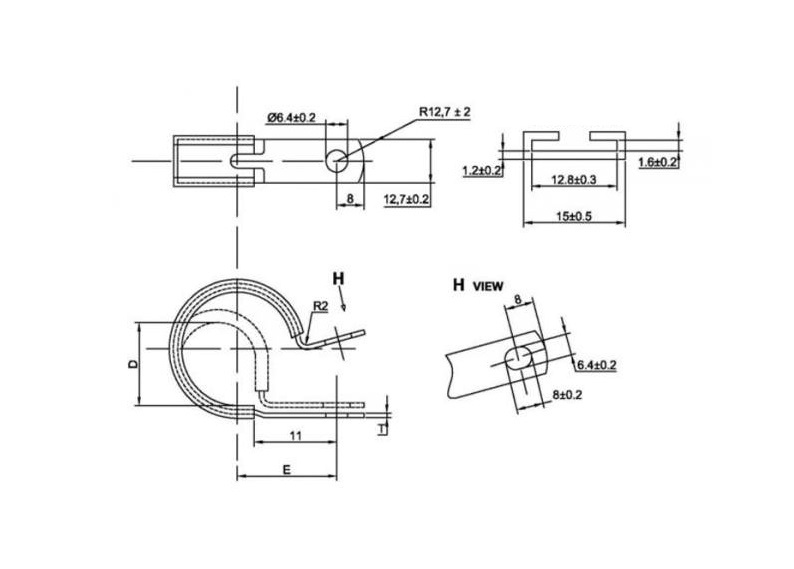

Rubber clamp with rubber inlay, steel, electro zinc plated, D=30,2mm, B=12,7mm, hole D=6,4mm, E=28,6mm
MT110767
Rubber clamp with rubber inlay, manufactured in steel which is electro zinc plated. The diameter is 30,2mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 28,6mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
E
28,6
Rubber material
PVC
Material type
Steel
Surface finish
Electro zinc plated
Series
SMS
Type
With rubber inlay
Diameter in mm
30.2
Hole diameter in mm
6.4
Thickness in mm
1.2
Long description
Rubber clamp with rubber inlay, manufactured in steel which is electro zinc plated. The diameter is 30,2mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 28,6mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
