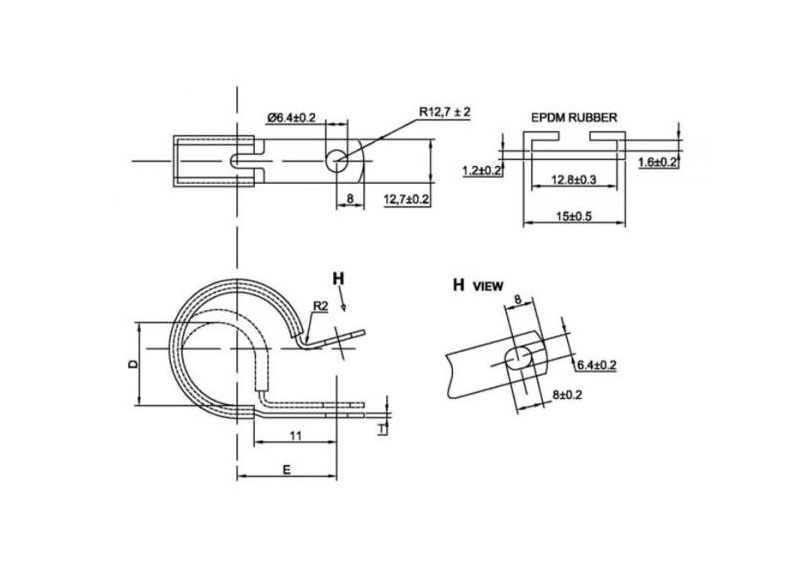

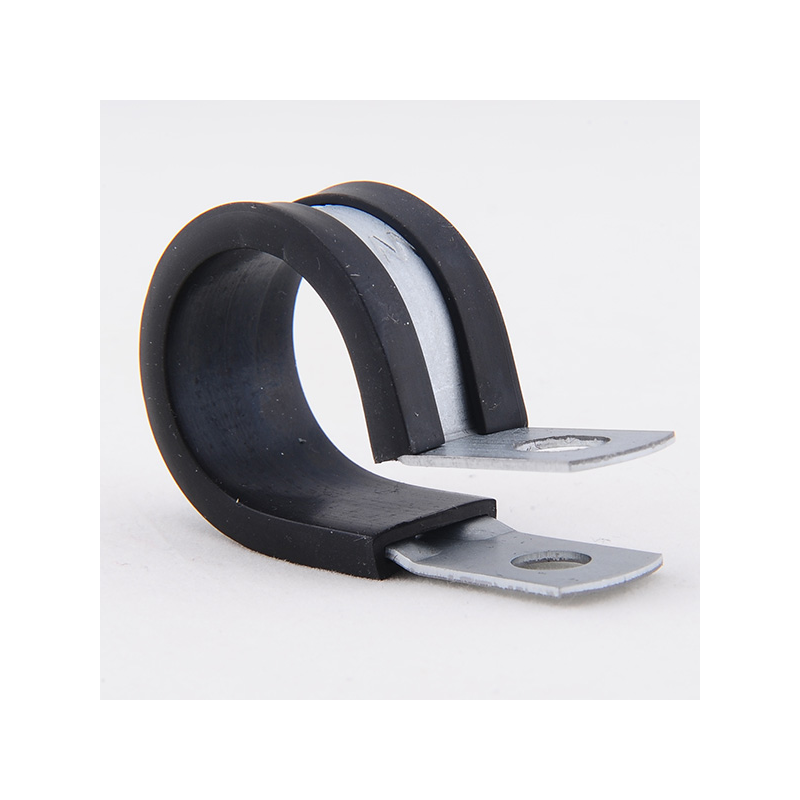

Rubber clamp with rubber inlay, steel, hot-dip galvanized , D=25,4mm, B=12,7mm, hole D=6,4mm, E=25,8mm
MT110735
Rubber clamp with rubber inlay, manufactured in steel which is hot-dip galvanized . The diameter is 25,4mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 25,8mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
E
25,8
Rubber material
EPDM
Material type
Steel
Material execution
W1
Surface finish
Hot-dip galvanized
Series
SMS
Type
With rubber inlay
Diameter in mm
25.4
Hole diameter in mm
6.4
Thickness in mm
1
Long description
Rubber clamp with rubber inlay, manufactured in steel which is hot-dip galvanized . The diameter is 25,4mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 25,8mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
