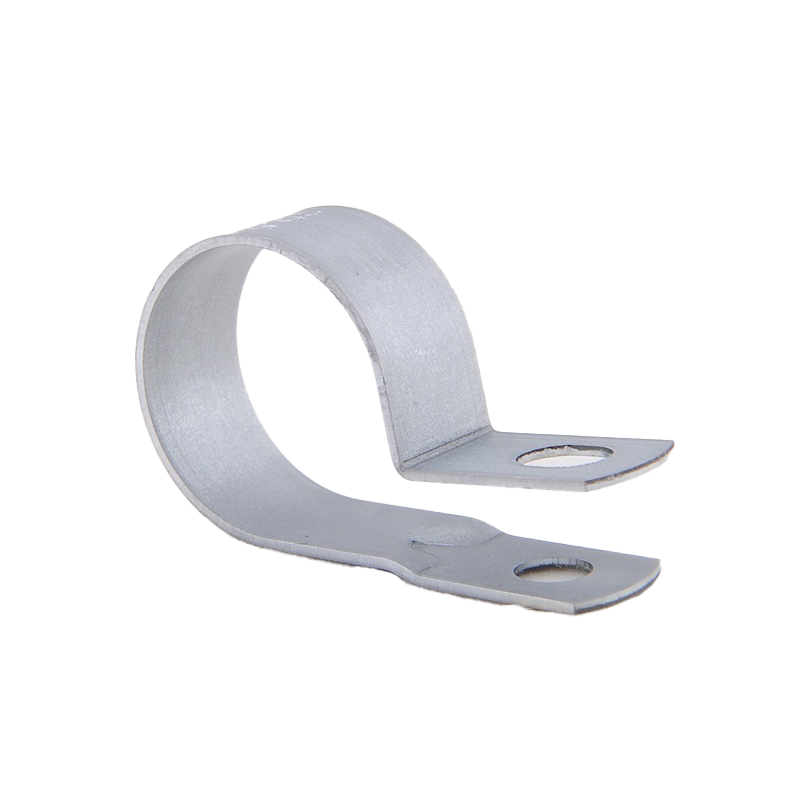

Rubber clamp without rubber inlay, stainless steel, D=10mm, B=12mm, hole D=4,5mm, E=10mm
MT110722

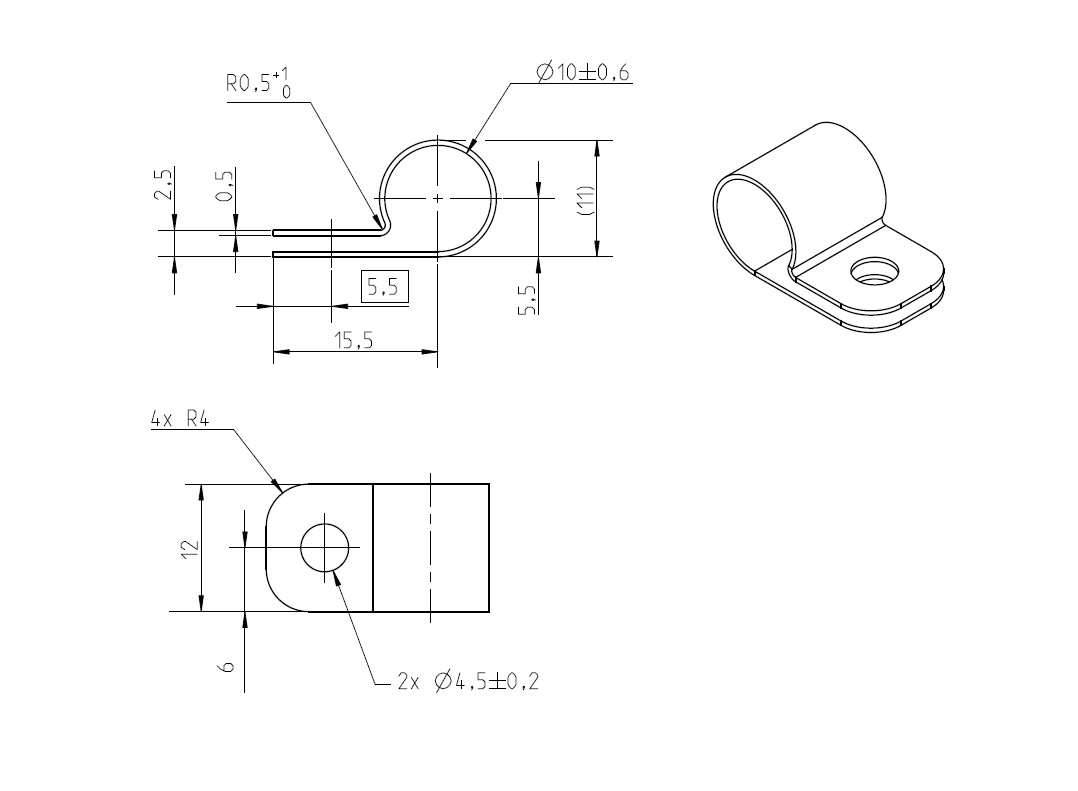

Rubber clamp without rubber inlay, manufactured in stainless steel. The diameter is 10mm and the width is 12mm. The hole diameter is 4,5mm. Distance between the mounting hole center and tube center is 10mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
E
10
Material
AISI 304
Material type
Stainless steel
Type
Without rubber inlay
Diameter in mm
10
Hole diameter in mm
4.5
Thickness in mm
0.5
Long description
Rubber clamp without rubber inlay, manufactured in stainless steel. The diameter is 10mm and the width is 12mm. The hole diameter is 4,5mm. Distance between the mounting hole center and tube center is 10mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
