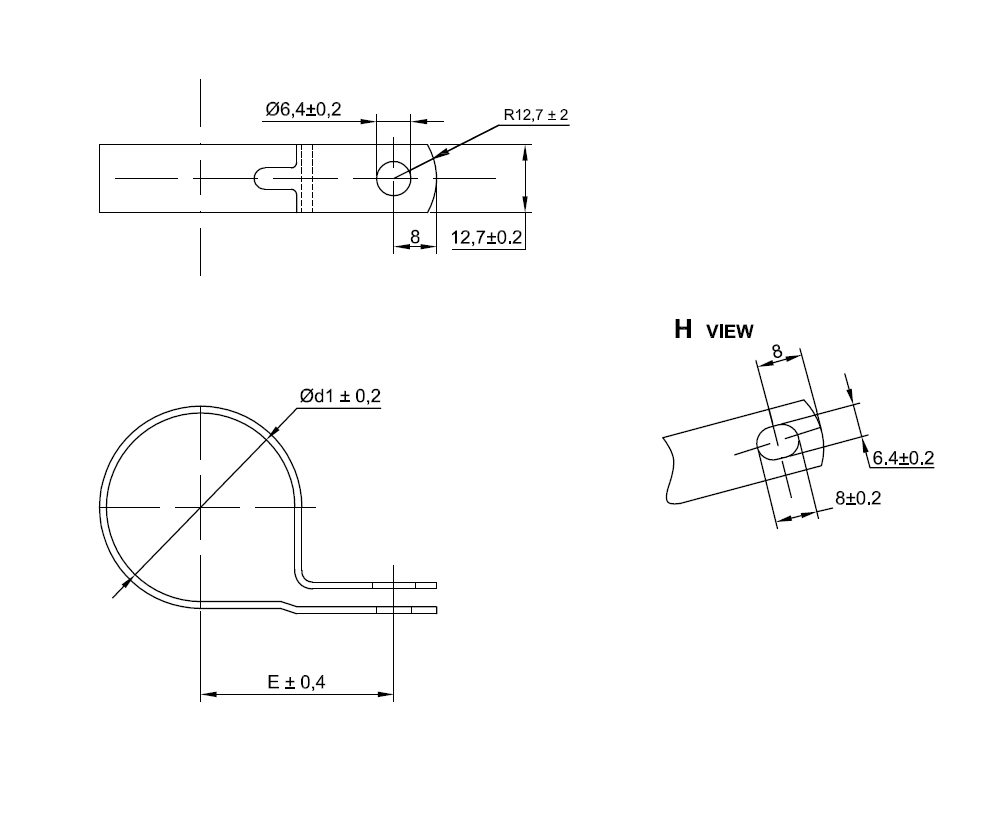

Rubber clamp without rubber inlay, steel, hot-dip galvanized , D=6,4mm, B=12,7mm, hole D=6,4mm, E=14,9mm
MT110742
Rubber clamp without rubber inlay, manufactured in steel which is hot-dip galvanized . The diameter is 6,4mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 14,9mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
E
14,9
Material type
Steel
Material execution
W1
Surface finish
Hot-dip galvanized
Series
SMS
Type
Without rubber inlay
Diameter in mm
6.4
Hole diameter in mm
6.4
Thickness in mm
0.8
Long description
Rubber clamp without rubber inlay, manufactured in steel which is hot-dip galvanized . The diameter is 6,4mm and the width is 12,7mm. The hole diameter is 6,4mm. Distance between the mounting hole center and tube center is 14,9mm. We offer many different products and variant, so if you cannot find a product that meet your requiremens then plese contact us.
