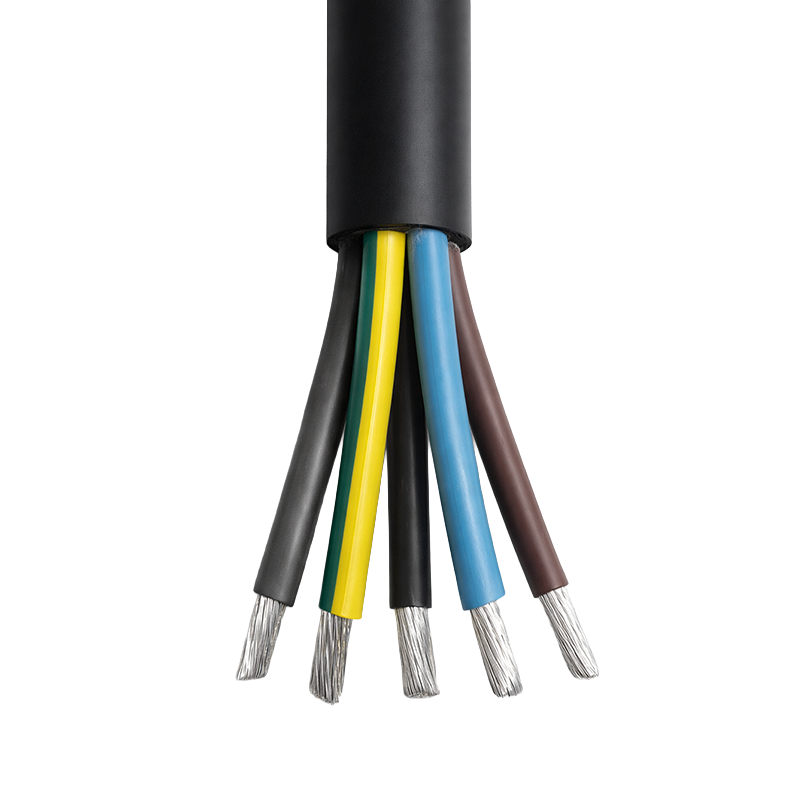

MegaAluFlex cable, 5x16 mm2, CL5, 450/750V, AL/EPR/CPE
MT113182
MegaAluFlex 450/750V is a flexible aluminium cable designed for power supply in industrial and technical installations. The cable is suitable for generators, machine connections and temporary or permanent power supplies where flexibility and reliable operation are required in both cold and warm environments. The robust construction with EPR insulation and CPE outer sheath ensures stable performance both indoors and outdoors.
Other approvals
Low Voltage Directive,IEC 60502-1,ISO 4892,IEC 60364-5-52,EN 50525-2-21
CE
Yes
Colour
Black
REACH
Yes
RoHS
Yes
Type
Multicore
UV-resistant
Yes
Outer sheath
CPE (EN 50363-2-1)
Rated voltage
450/750 V
Conductor temperature, max. - °C
90
Short-circuit temperature (5s), max. - °C
250
Installation temperature, min. - °C
-25
Operating temperature, min. - °C
-40 (fixed installation)
Bending radius, min.
6xD (fixed installation)
Flame retardant
IEC 60332-1-2
Oil resistant
IEC 60811-404
CPR classification
Eca DoP nr. 25021302
Number of cores and nominal cross-section
5x16
Conductor diameter, approx. - mm
5,5
Nominal insulation thickness - mm
1,2
Nominal outer sheath thickness - mm
3,9
Cable diameter, approx. - mm
31,9
Cable weight, approx. - kg/km
1173,4
Permissible pulling force, max. - kN
2,4
DC conductor resistance at 20 °C, max. - Ω/km
1,91
Short circuit current (1 s), max. - kA
1,5
Current carrying capacity, method E (free air) - A
77
Long description
MegaAluFlex 450/750V is a flexible aluminium cable designed for power supply in industrial and technical installations. The cable is suitable for generators, machine connections and temporary or permanent power supplies where flexibility and reliable operation are required in both cold and warm environments. The robust construction with EPR insulation and CPE outer sheath ensures stable performance both indoors and outdoors.
Cable marking:
Example: Megatrade Industrial Sourcing EN 50525-2-21 IEC 60502-1 450/750V 5x16mm2 CL5 AL/EPR/CPE 2026 xxxxm
Correction factor for current carrying capacity at temperatures other than +30 °C:
10°C: 1,15 15°C: 1,12 20°C: 1,08 25°C: 1,04 35°C: 0,96 40°C: 0,91 45°C: 0,87 50°C: 0,82 55°C: 0,76 60°C: 0,71 65°C: 0,65 70°C: 0,58 75°C: 0,50 80°C: 0,41
