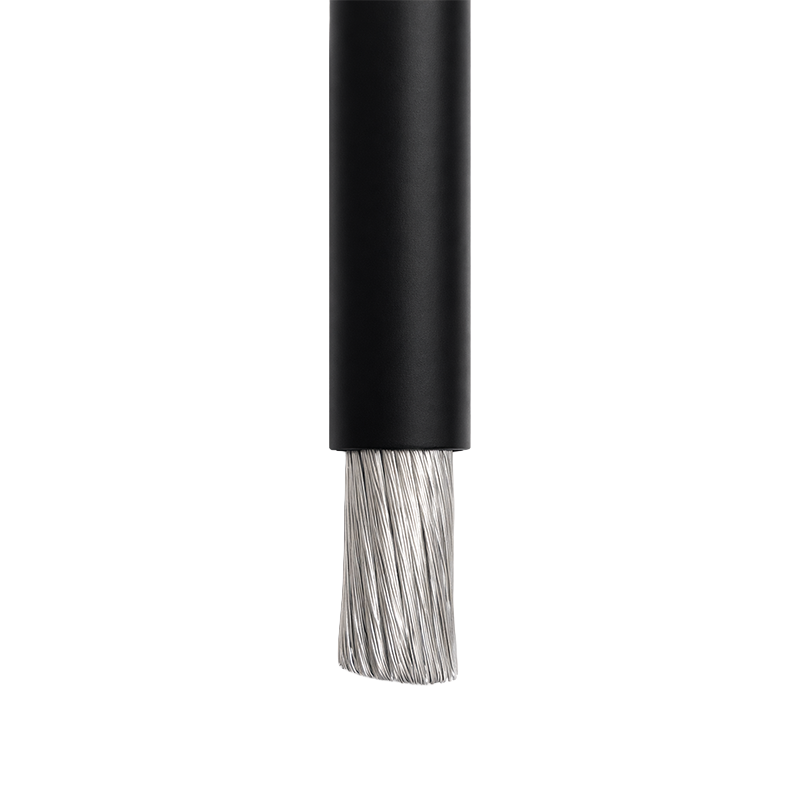

MegaAluFlex cable, 1x300 mm2, CL5, 0,6/1kV, AL/EPR/CPE
MT113180
MegaAluFlex 0.6/1kV is a flexible aluminium cable designed for power and supply installations. The cable is suitable for main and distribution currents in industrial plants, technical installations and energy supply systems where high current carrying capacity and stable operation are required in both cold and warm conditions. The robust construction with EPR insulation and durable CPE outer sheath ensures reliable performance in demanding environments – both indoors and outdoors.
Other approvals
Low Voltage Directive,IEC 60502-1,ISO 4892,IEC 60364-5-52
CE
Yes
Colour
Black
REACH
Yes
RoHS
Yes
Type
Single core
UV-resistant
Yes
Outer sheath
CPE (EN 50363-2-1)
Core identification
1C - Natural
Conductor temperature, max. - °C
90
Short-circuit temperature (5s), max. - °C
250
Installation temperature, min. - °C
-25
Operating temperature, min. - °C
-40 (fixed installation)
Bending radius, min.
6xD (fixed installation)
Flame retardant
IEC 60332-1-2
Oil resistant
IEC 60811-404
CPR classification
Eca DoP nr. 25021301
Number of cores and nominal cross-section
1x300
Conductor diameter, approx. - mm
24,4
Nominal insulation thickness - mm
2,4
Nominal outer sheath thickness - mm
1,9
Cable diameter, approx. - mm
35,6
Cable weight, approx. - kg/km
1374
Permissible pulling force, max. - kN
9
DC conductor resistance at 20 °C, max. - Ω/km
0,1
AC conductor resistance at 90 °C, max. - Ω/km
0,13
Short circuit current (1 s), max. - kA
30
Current carrying capacity, method G (flat, horizontal) - A
708
Long description
MegaAluFlex 0.6/1kV is a flexible aluminium cable designed for power and supply installations. The cable is suitable for main and distribution currents in industrial plants, technical installations and energy supply systems where high current carrying capacity and stable operation are required in both cold and warm conditions. The robust construction with EPR insulation and durable CPE outer sheath ensures reliable performance in demanding environments – both indoors and outdoors.
Cable marking:
Example: MEGATRADE INDUSTRIAL SOURCING IEC 60502-1 0.6/1kV 1x300mm2 CL5 AL/EPR/CPE 2026 xxxxm
Correction factor for current rating at temperatures other than +30 °C:
10°C: 1,15 15°C: 1,12 20°C: 1,08 25°C: 1,04 35°C: 0,96 40°C: 0,91 45°C: 0,87 50°C: 0,82 55°C: 0,76 60°C: 0,71 65°C: 0,65 70°C: 0,58
75°C: 0,50 80°C: 0,41
