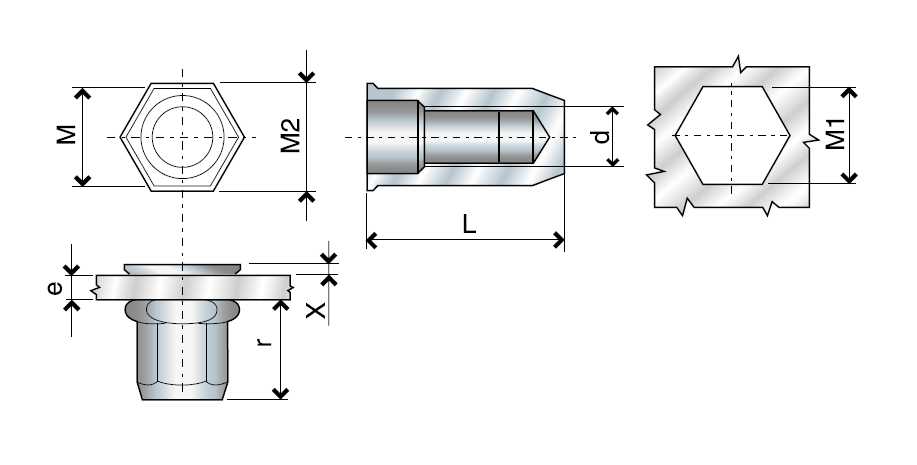

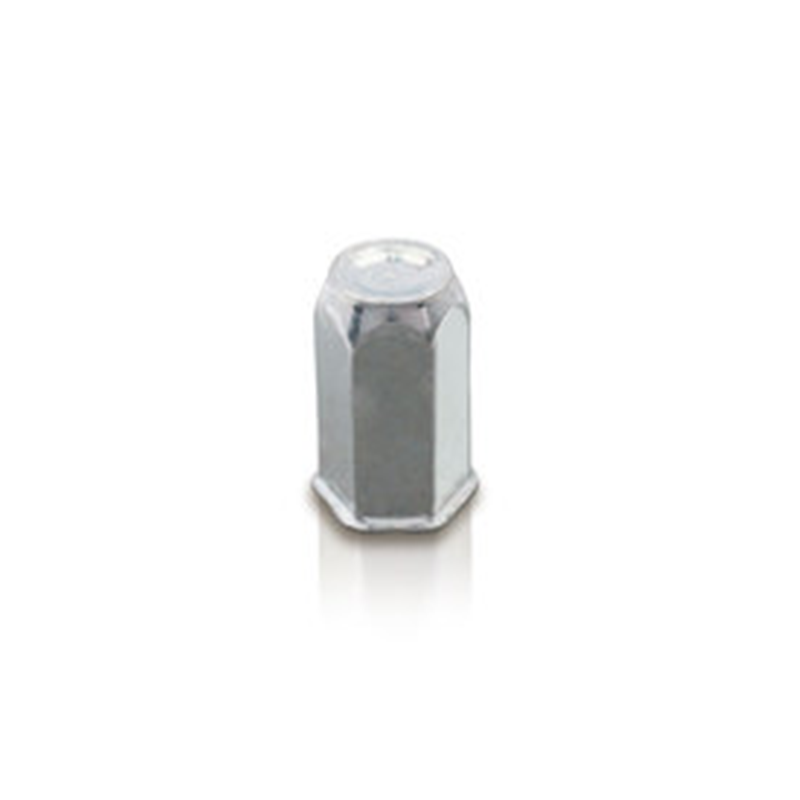

Nut, closed, hexagonal, steel, width=5,9, M4, L=16, min. clamping range=0,5
MT107602
Nut manufactured in steel of the type closed and with reduceret collar. The Width is 5,9mm, the length is 16mm, and the tread size is M4. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
Shape
Hexagonal
Tread size
M4
Collar
Reduced
M1
6
M2
6,6
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
12,6
Series
ERC
Type
Closed
X
0,6
Diameter in mm
0
Torque in N.m
4
Hole diameter in mm
0
L
16
Clamping range, min.
0.5
Clamping range, max.
2
Tensile strenght, axial
6750
Long description
Nut manufactured in steel of the type closed and with reduceret collar. The Width is 5,9mm, the length is 16mm, and the tread size is M4. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
