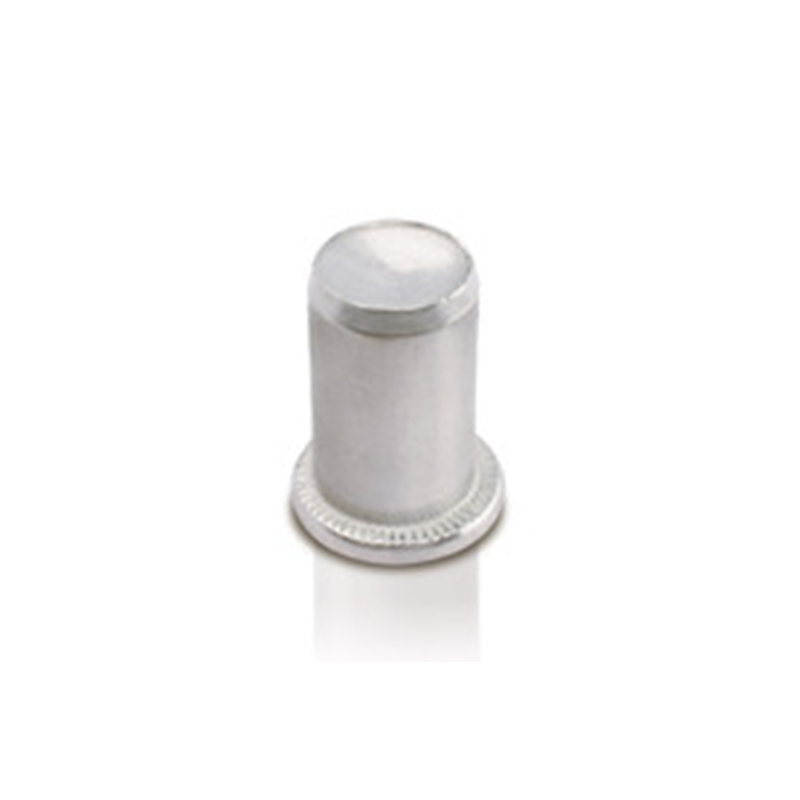

Nut, closed, round, aluminium, diameter=10,9, M8, L=25,5, min. clamping range=0,8
MT107418

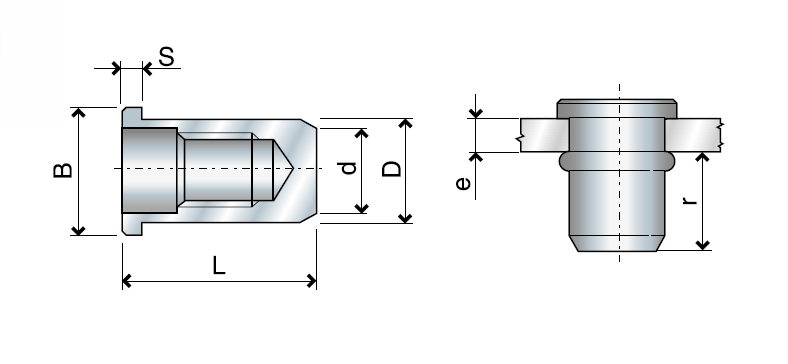

Nut manufactured in aluminium of the type closed and with cylindrisk collar. The diameter is 10,9mm, the length is 25,5mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
15
Shape
Round
Tread size
M8
Collar
Cylindrical
Material type
Aluminium
S
1,5
Series
FTTC
Type
Closed
Diameter in mm
10.9
Torque in N.m
20
Hole diameter in mm
11
L
25.5
Clamping range, min.
0.8
Clamping range, max.
3.5
Tensile strenght, axial
13000
Nettovægt
0.008
Varekode
8302490099
Lande-/områdekode for oprindelse
IT
Long description
Nut manufactured in aluminium of the type closed and with cylindrisk collar. The diameter is 10,9mm, the length is 25,5mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
