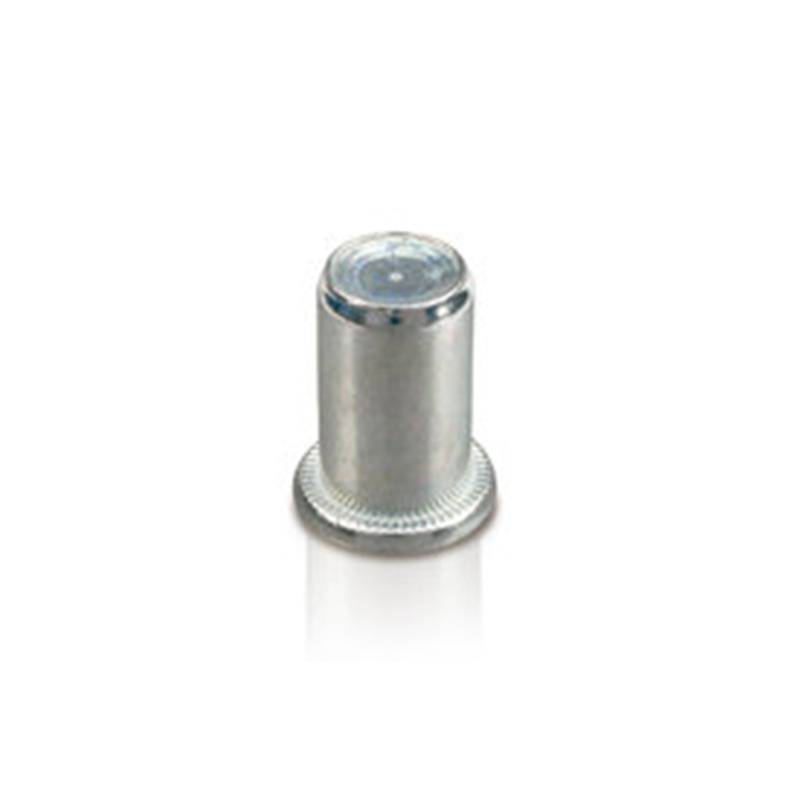

Nut, closed, round, steel, diameter=10,9, M8, L=25,5, min. clamping range=0,8
MT107424
Nut manufactured in steel of the type closed and with cylindrisk collar. The diameter is 10,9mm, the length is 25,5mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
15
Shape
Round
Tread size
M8
Collar
Cylindrical
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
19,3
S
1,5
Series
FTTC/C
Type
Closed
Diameter in mm
0
Torque in N.m
24
Hole diameter in mm
11
L
25.5
Clamping range, min.
0.8
Clamping range, max.
3.5
Tensile strenght, axial
0
Long description
Nut manufactured in steel of the type closed and with cylindrisk collar. The diameter is 10,9mm, the length is 25,5mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
