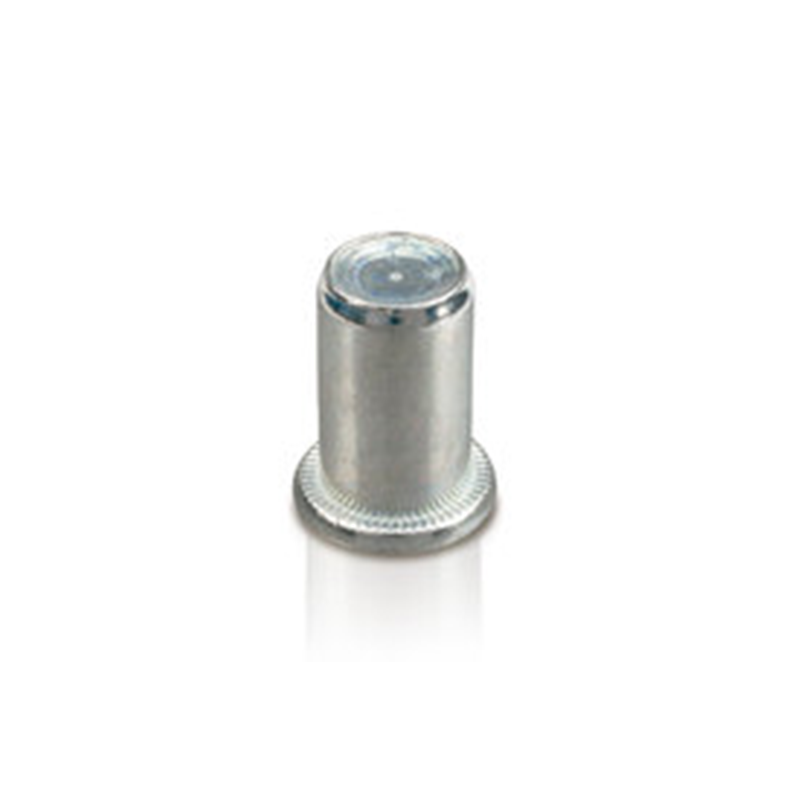

Nut, closed, round, steel, diameter=5,9, M4, L=16,5, min. clamping range=0,3
MT107420

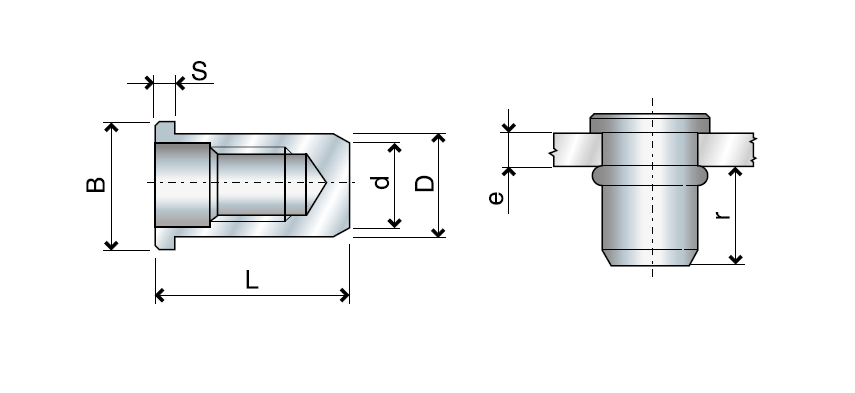

Nut manufactured in steel of the type closed and with cylindrisk collar. The diameter is 5,9mm, the length is 16,5mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
9
Shape
Round
Tread size
M4
Collar
Cylindrical
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
12,8
S
1
Series
FTTC/C
Type
Closed
Diameter in mm
0
Drejningsmoment i N.m
4
Hole diameter in mm
6
L
16.5
Nitteevne, min.
0.3
Nitteevne, max.
2.5
Tensile strenght, axial
7300
Long description
Nut manufactured in steel of the type closed and with cylindrisk collar. The diameter is 5,9mm, the length is 16,5mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
