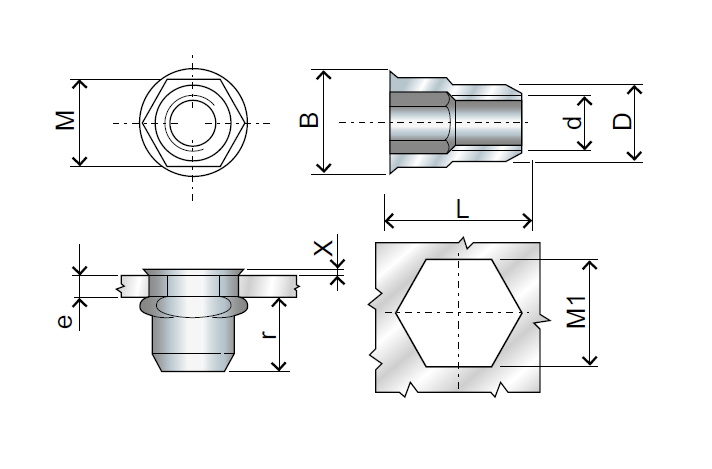

Nut, open, hexagonal, stainless steel, diameter=10,9, M8, L=15,8, min. clamping range=0,8
MT107549
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 15,8mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
12
Shape
Hexagonal
Tread size
M8
Collar
Reduced
M1
11
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
11,1
Series
IE
Type
Open
X
0,8
Diameter in mm
0
Drejningsmoment i N.m
32
Hole diameter in mm
0
L
15.8
Nitteevne, min.
0.8
Nitteevne, max.
3
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 15,8mm, and the tread size is M8. The minimum clamping range is 0,8mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
