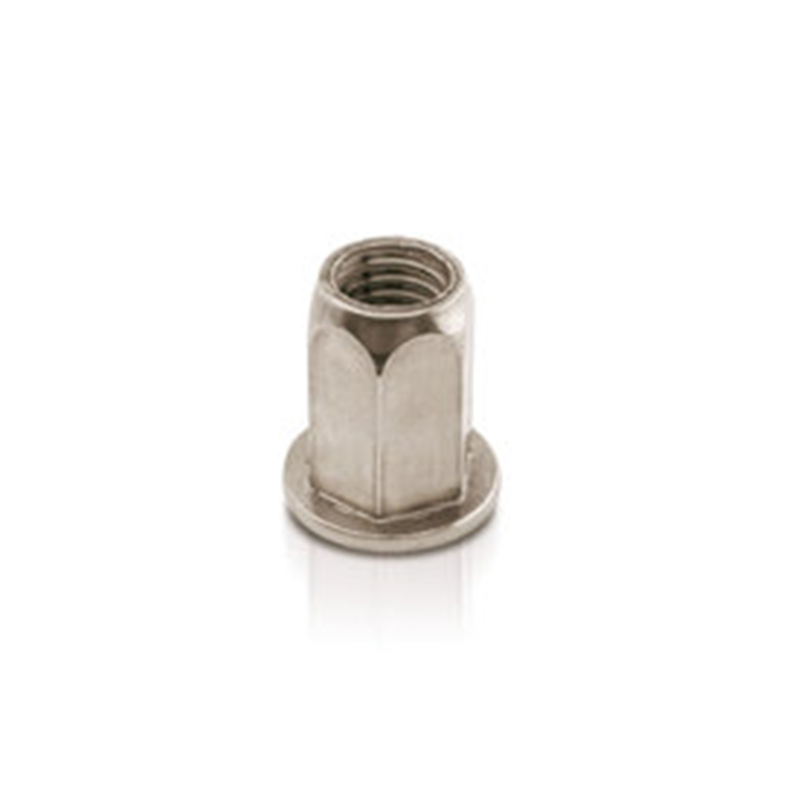

Nut, open, hexagonal, stainless steel, width=10,9, M8, L=18, min. clamping range=0,5
MT107584
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The Width is 10,9mm, the length is 18mm, and the tread size is M8. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
16
Shape
Hexagonal
Tread size
M8
Collar
Cylindrical
M1
11
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
11,8
S
1,5
Series
FTTE
Type
Open
Diameter in mm
0
Torque in N.m
24
Hole diameter in mm
0
L
18
Clamping range, min.
0.5
Clamping range, max.
3
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The Width is 10,9mm, the length is 18mm, and the tread size is M8. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
