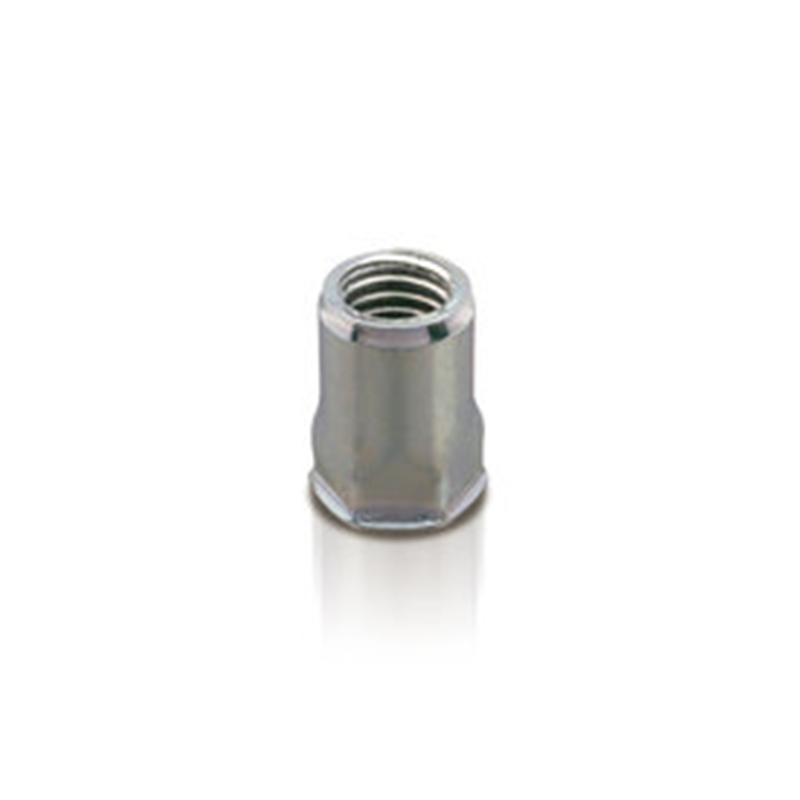

Nut, open, hexagonal, steel, diameter=10,6, M8, L=16, min. clamping range=0,9
MT107600
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 10,6mm, the length is 16mm, and the tread size is M8. The minimum clamping range is 0,9mmand the maximum clamping range is 3,3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
Shape
Hexagonal
Tread size
M8
Collar
Reduced
M1
10,7
M2
11,6
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
11,2
Series
FTRE
Type
Open
X
0,8
Diameter in mm
0
Torque in N.m
24
Hole diameter in mm
0
L
16
Clamping range, min.
0.9
Clamping range, max.
3.3
Tensile strenght, axial
0
Long description
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 10,6mm, the length is 16mm, and the tread size is M8. The minimum clamping range is 0,9mmand the maximum clamping range is 3,3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
