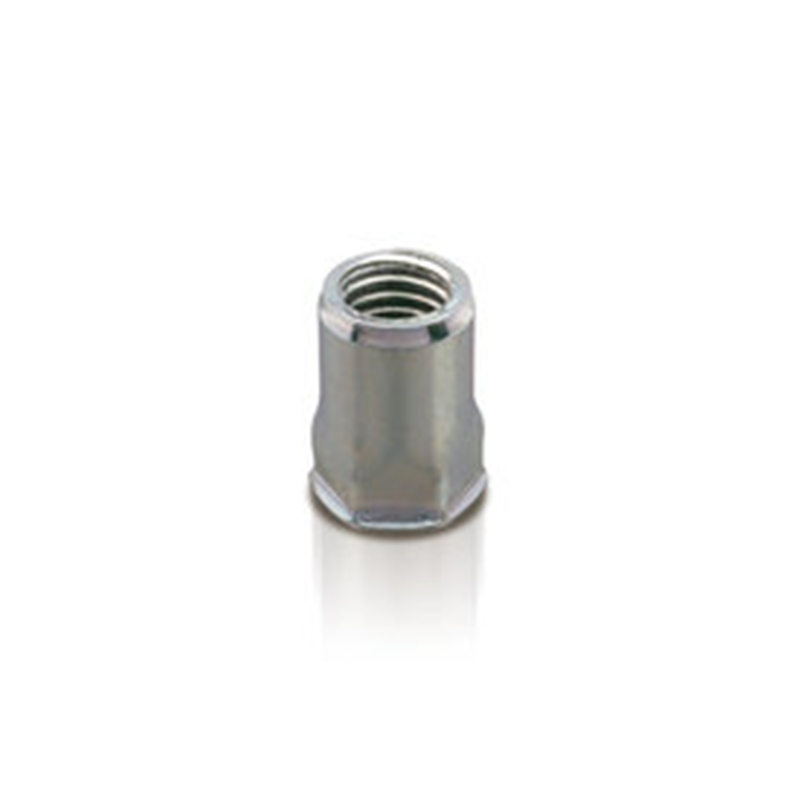

Nut, open, hexagonal, steel, diameter=6,3, M4, L=10,4, min. clamping range=0,5
MT107597
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 6,3mm, the length is 10,4mm, and the tread size is M4. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
Shape
Hexagonal
Tread size
M4
Collar
Reduced
M1
6,4
M2
7,1
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
7,8
Series
FTRE
Type
Open
X
0,6
Diameter in mm
0
Drejningsmoment i N.m
4
Hole diameter in mm
0
L
10.4
Nitteevne, min.
0.5
Nitteevne, max.
2
Tensile strenght, axial
6400
Long description
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 6,3mm, the length is 10,4mm, and the tread size is M4. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
