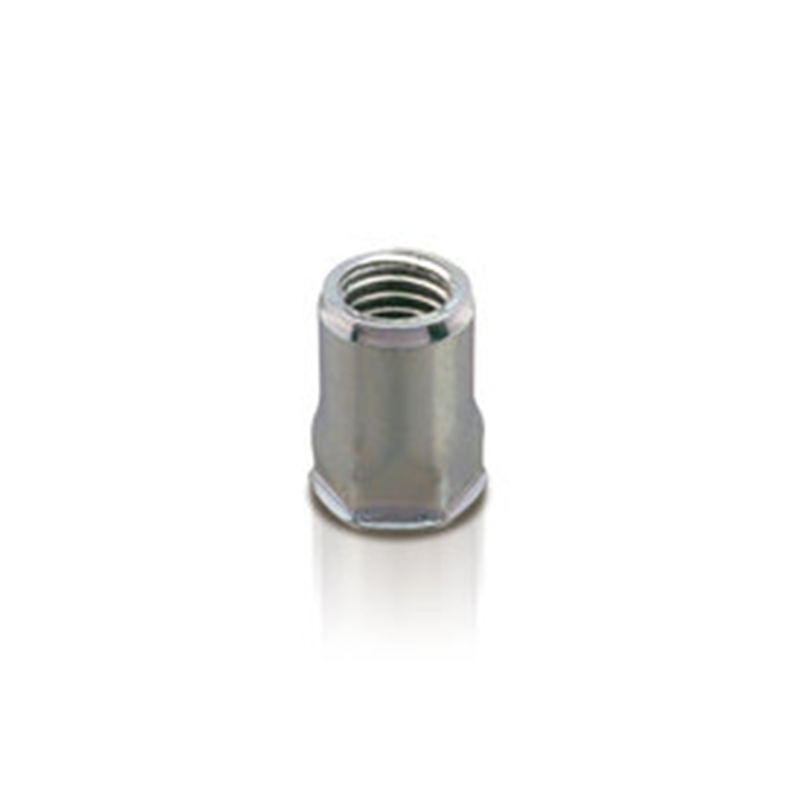

Nut, open, hexagonal, steel, diameter=9,6, M6, L=14,6, min. clamping range=0,7
MT107599
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 9,6mm, the length is 14,6mm, and the tread size is M6. The minimum clamping range is 0,7mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
Shape
Hexagonal
Tread size
M6
Collar
Reduced
M1
9,7
M2
10,4
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
11,3
Series
FTRE
Type
Open
X
0,7
Diameter in mm
0
Torque in N.m
14
Hole diameter in mm
0
L
14.6
Clamping range, min.
0.7
Clamping range, max.
3
Tensile strenght, axial
11900
Long description
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 9,6mm, the length is 14,6mm, and the tread size is M6. The minimum clamping range is 0,7mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
