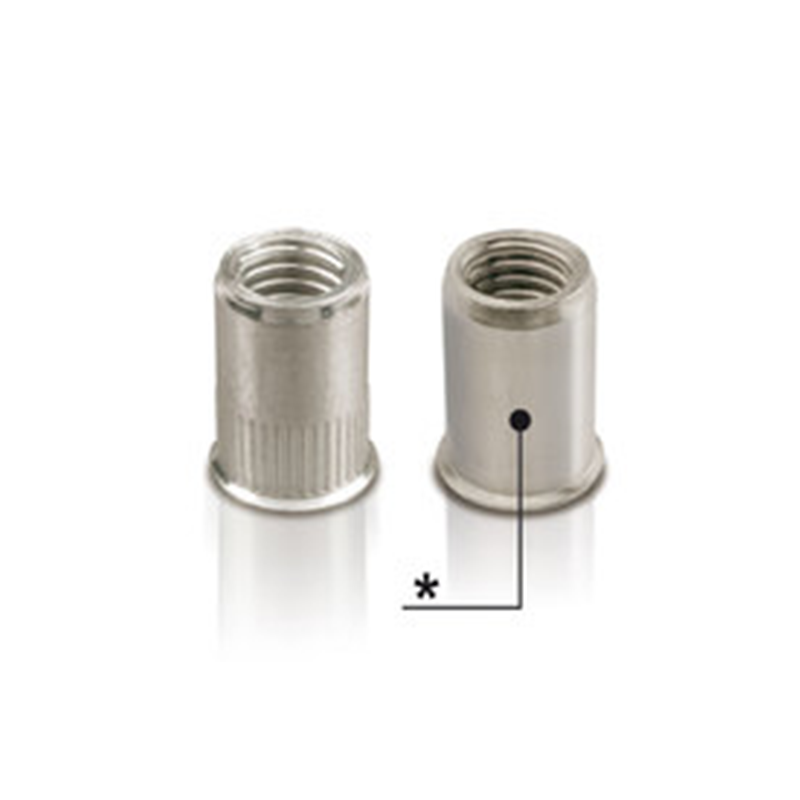

Nut, open, knurled, stainless steel, diameter=10,9, M8, L=16,5, min. clamping range=1
MT107472
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 16,5mm, and the tread size is M8. The minimum clamping range is 1mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

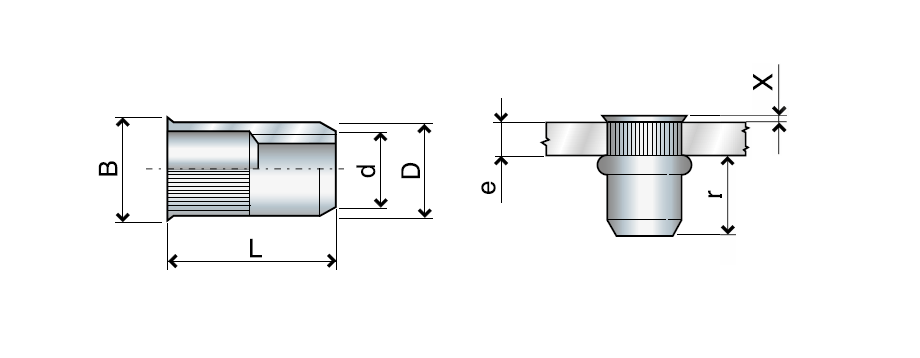

B
12
Shape
Knurled
Tread size
M8
Collar
Reduced
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
12,4
Series
FTR
Type
Open
X
0,8
Diameter in mm
0
Drejningsmoment i N.m
32
Hole diameter in mm
11
L
16.5
Nitteevne, min.
1
Nitteevne, max.
2.5
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 16,5mm, and the tread size is M8. The minimum clamping range is 1mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
