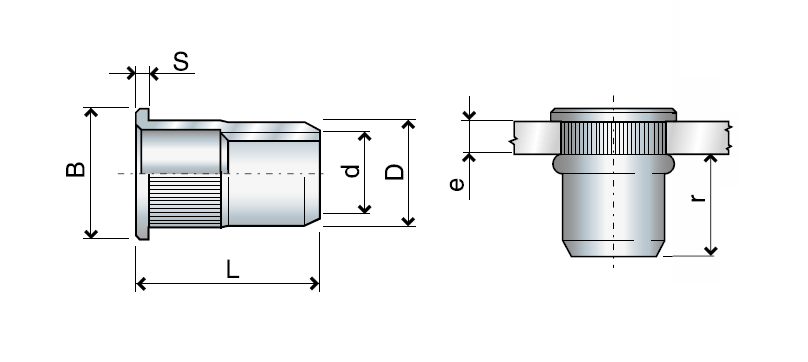

Nut, open, knurled, stainless steel, diameter=5,9, M4, L=11, min. clamping range=0,3
MT107453
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 11mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
9
Shape
Knurled
Tread size
M4
Collar
Cylindrical
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
7,5
S
1
Series
FTT/C
Type
Open
Diameter in mm
0
Torque in N.m
7
Hole diameter in mm
6
L
11
Clamping range, min.
0.3
Clamping range, max.
2.5
Tensile strenght, axial
6200
Long description
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 11mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
