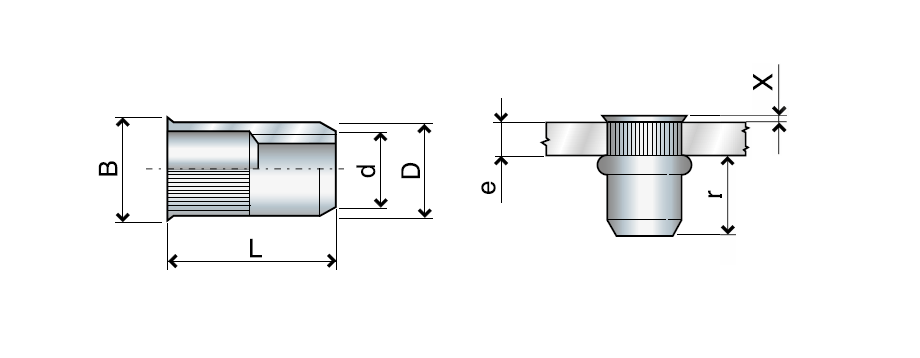

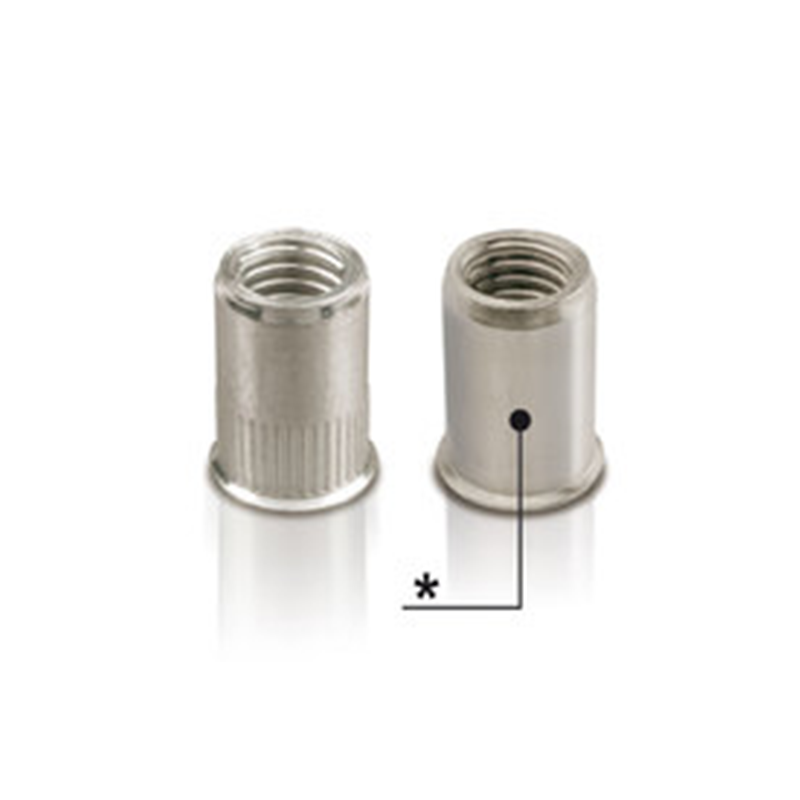

    Nut, open, knurled, stainless steel, diameter=6,9, M5, L=12, min. clamping range=0,5

    MT107470

    Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 6,9mm, the length is 12mm, and the tread size is M5. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

    B
    8
    Shape
    Knurled
    Tread size
    M5
    Collar
    Reduced
    Material
    AISI 304 Cu
    Material type
    Stainless steel
    r, max.
    9,6
    Series
    FTR
    Type
    Open
    X
    0,7
    Diameter in mm
    0
    Torque in N.m
    14
    Hole diameter in mm
    7
    L
    12
    Clamping range, min.
    0.5
    Clamping range, max.
    2
    Tensile strenght, axial
    0
    Long description

    Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 6,9mm, the length is 12mm, and the tread size is M5. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
