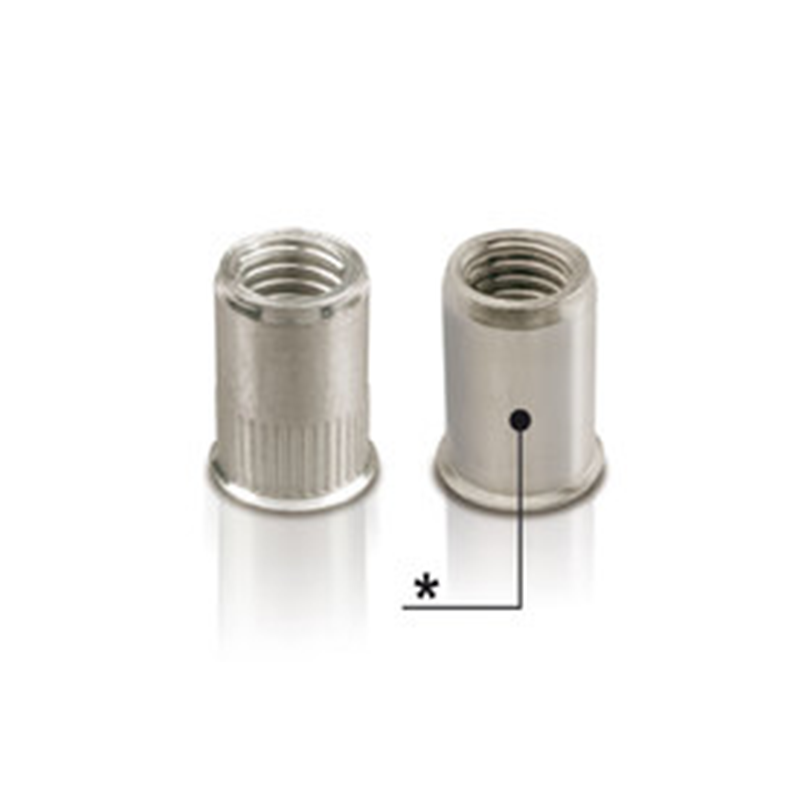

Nut, open, knurled, stainless steel, diameter=8,9, M6, L=13,5, min. clamping range=0,5
MT107471
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 8,9mm, the length is 13,5mm, and the tread size is M6. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

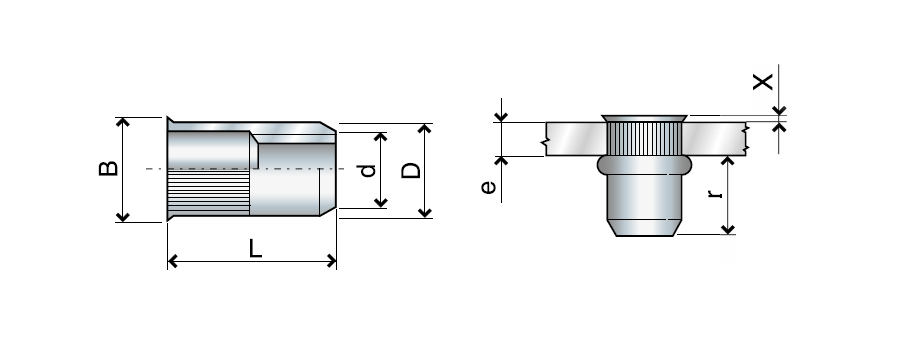

B
10
Shape
Knurled
Tread size
M6
Collar
Reduced
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
10,7
Series
FTR
Type
Open
X
0,7
Diameter in mm
0
Torque in N.m
22
Hole diameter in mm
9
L
13.5
Clamping range, min.
0.5
Clamping range, max.
2
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with reduceret collar. The diameter is 8,9mm, the length is 13,5mm, and the tread size is M6. The minimum clamping range is 0,5mmand the maximum clamping range is 2mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
