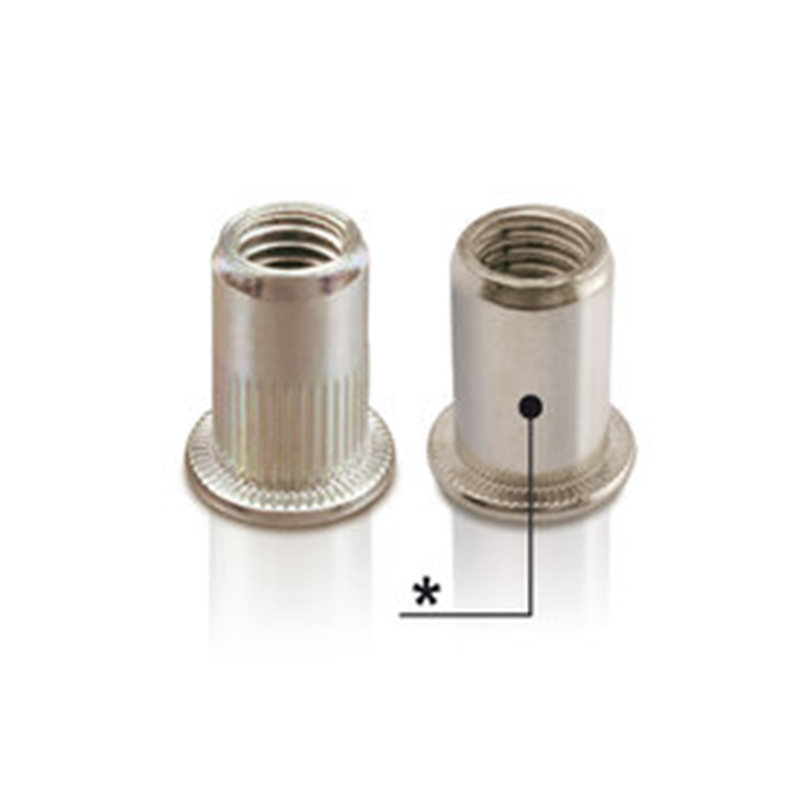

Nut, open, knurled, stainless steel, diameter=8,9, M6, L=14,5, min. clamping range=0,5
MT107455
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The diameter is 8,9mm, the length is 14,5mm, and the tread size is M6. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

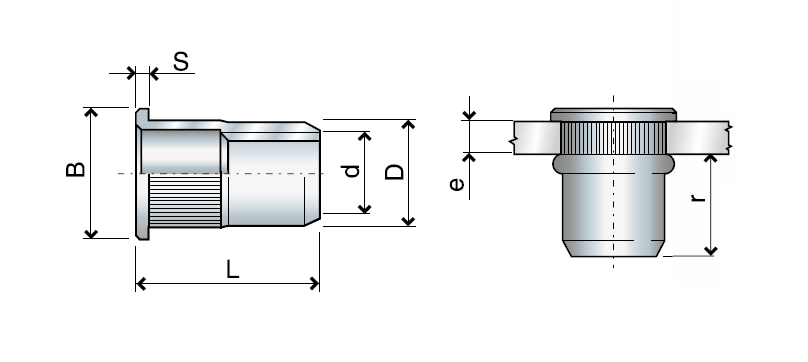

B
12
Shape
Knurled
Tread size
M6
Collar
Cylindrical
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
10,2
S
1,5
Series
FTT/C
Type
Open
Diameter in mm
0
Torque in N.m
22
Hole diameter in mm
9
L
14.5
Clamping range, min.
0.5
Clamping range, max.
3
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with cylindrisk collar. The diameter is 8,9mm, the length is 14,5mm, and the tread size is M6. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
