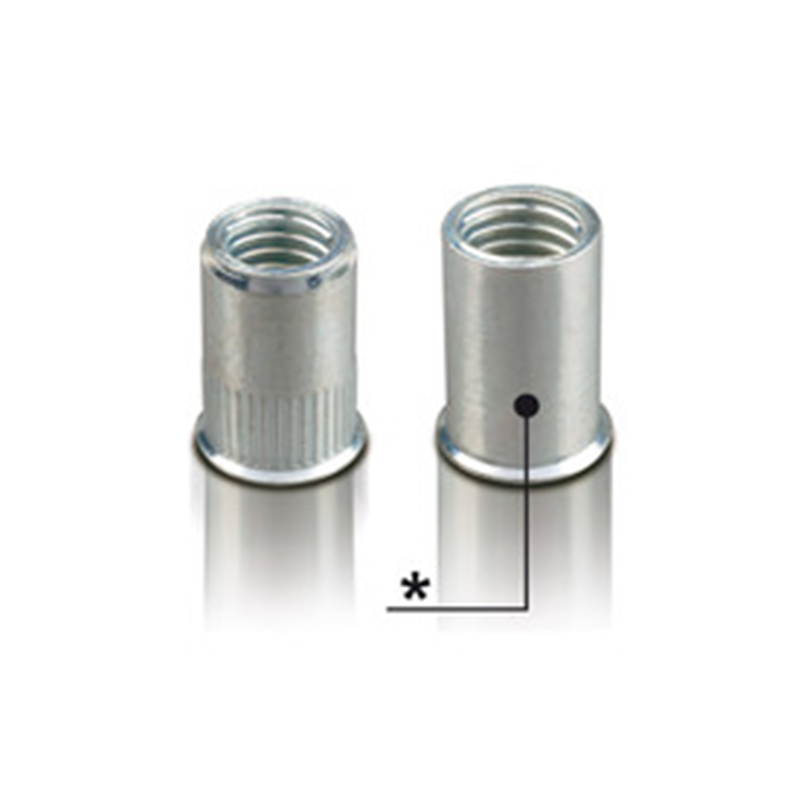

Nut, open, knurled, steel, diameter=10,9, M8, L=16,5, min. clamping range=1
MT112162
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 16,5mm, and the tread size is M8. The minimum clamping range is 1mm and the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

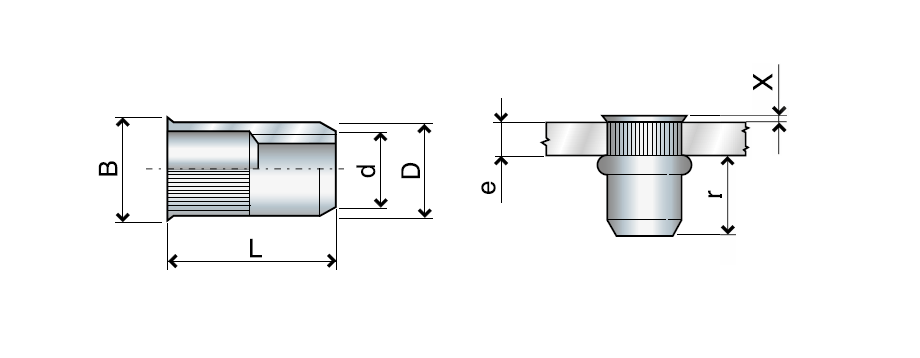

B
12
Shape
Knurled
Tread size
M8
Collar
Reduced
Material type
Steel
Surface finish
Electro zinc plated
r, max.
12,4
Series
FTR/C
Type
Open
X
0,8
Diameter in mm
10.9
Drejningsmoment i N.m
24
Hole diameter in mm
11
L
16.5
Nitteevne, min.
1
Nitteevne, max.
2.5
Tensile strenght, axial
24200
Long description
Nut manufactured in steel of the type open and with reduceret collar. The diameter is 10,9mm, the length is 16,5mm, and the tread size is M8. The minimum clamping range is 1mm and the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
