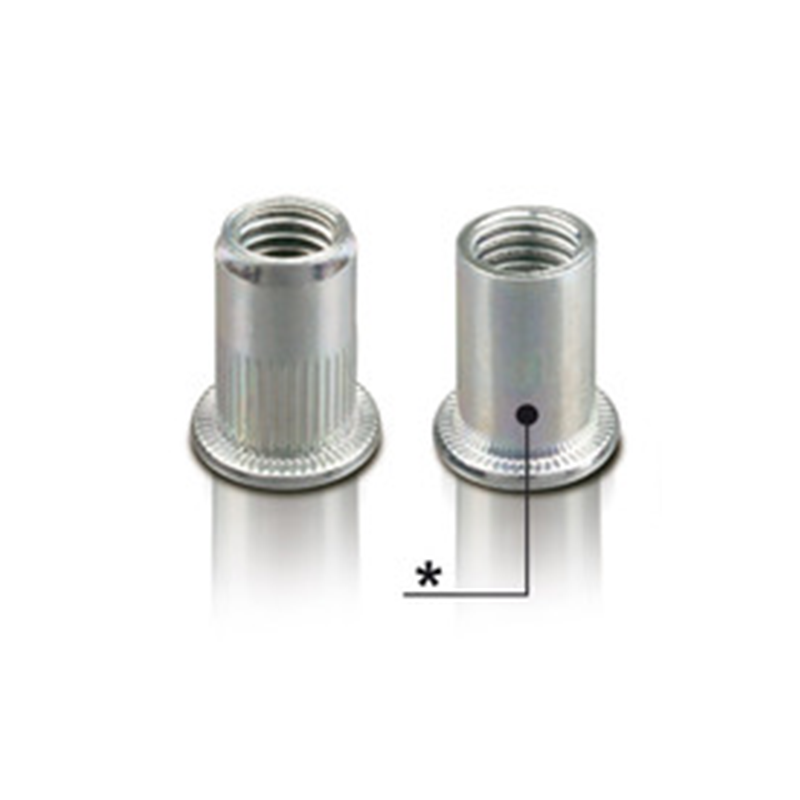

Nut, open, knurled, steel, diameter=5,9, M4, L=11, min. clamping range=0,3
MT107362
Nut manufactured in steel of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 11mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
9
Shape
Knurled
Tread size
M4
Collar
Cylindrical
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
7,5
S
1
Series
FTT/C
Type
Open
Diameter in mm
5.9
Torque in N.m
4
Hole diameter in mm
6
L
11
Clamping range, min.
0.3
Clamping range, max.
2.5
Tensile strenght, axial
7300
Long description
Nut manufactured in steel of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 11mm, and the tread size is M4. The minimum clamping range is 0,3mmand the maximum clamping range is 2,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
