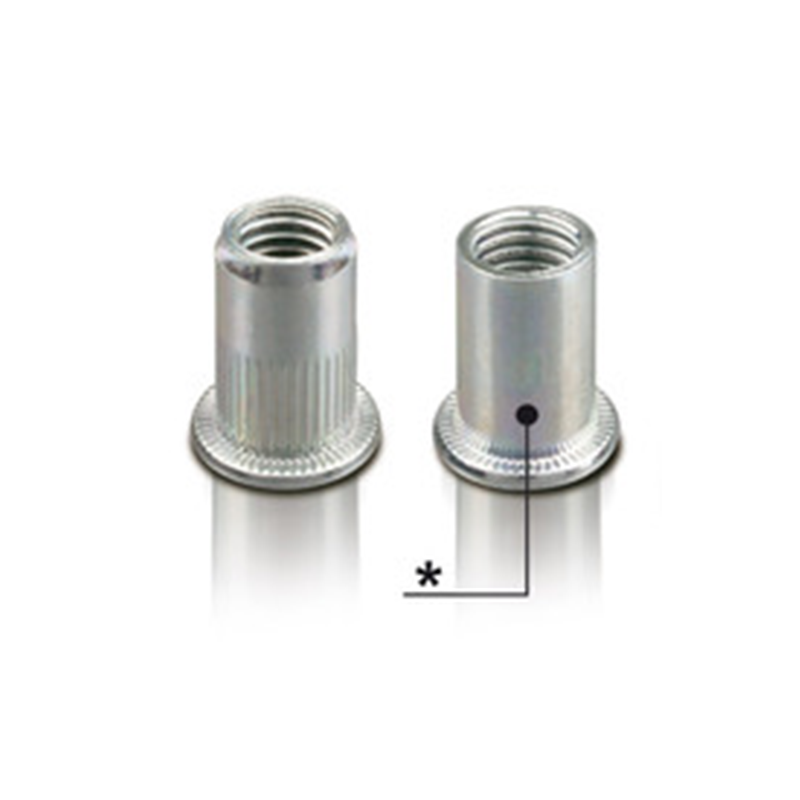

Nut, open, knurled, steel, diameter=6,9, M5, L=13, min. clamping range=0,5
MT107363
Nut manufactured in steel of the type open and with cylindrisk collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

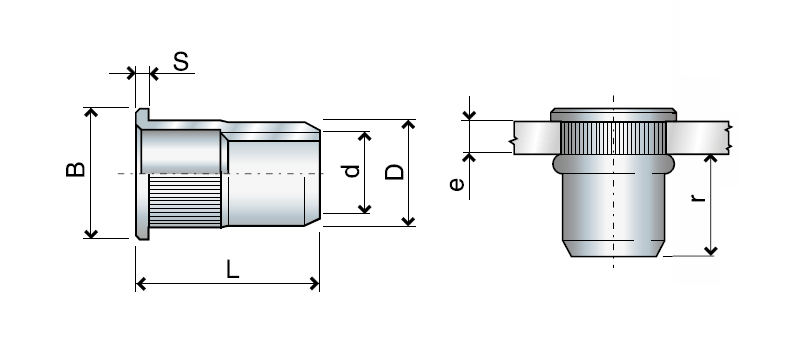

B
10
Shape
Knurled
Tread size
M5
Collar
Cylindrical
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
9,1
S
1,2
Series
FTT/C
Type
Open
Diameter in mm
6.9
Drejningsmoment i N.m
7
Hole diameter in mm
7
L
13
Nitteevne, min.
0.5
Nitteevne, max.
3
Tensile strenght, axial
0
Long description
Nut manufactured in steel of the type open and with cylindrisk collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 0,5mmand the maximum clamping range is 3mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
