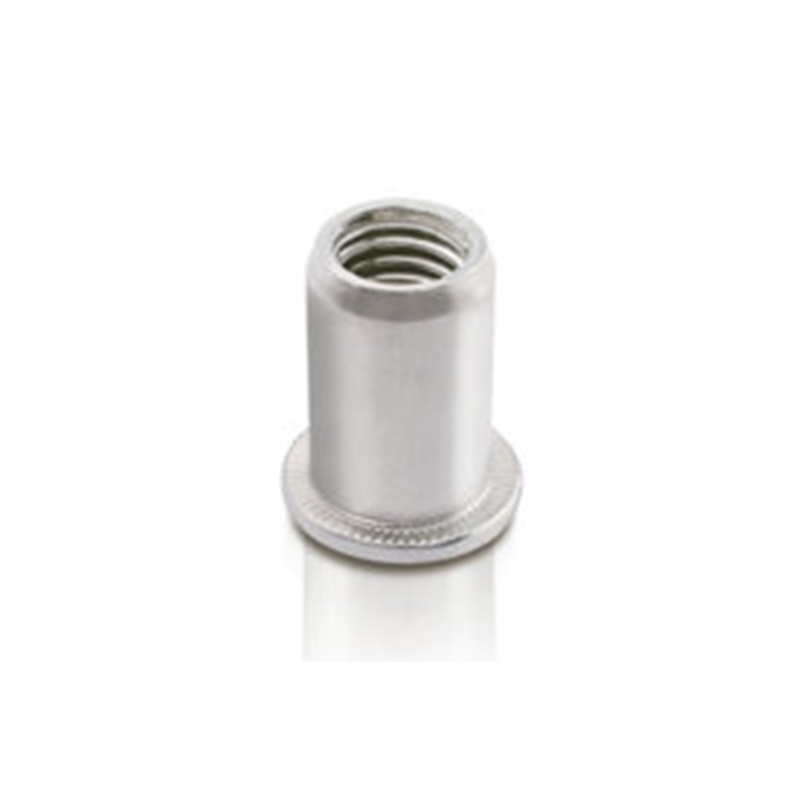

Nut, open, round, aluminium, diameter=12,9, M10, L=21, min. clamping range=1
MT107351
Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 12,9mm, the length is 21mm, and the tread size is M10. The minimum clamping range is 1mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
17
Shape
Round
Tread size
M10
Collar
Cylindrical
Material type
Aluminium
S
1,7
Series
FTT/C
Type
Open
Diameter in mm
12.9
Torque in N.m
25
Hole diameter in mm
13
L
21
Clamping range, min.
1
Clamping range, max.
3.5
Tensile strenght, axial
15000
Long description
Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 12,9mm, the length is 21mm, and the tread size is M10. The minimum clamping range is 1mmand the maximum clamping range is 3,5mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
