Nut, open, round, aluminium, diameter=4,9, M3, L=9, min. clamping range=0,3
MT111466

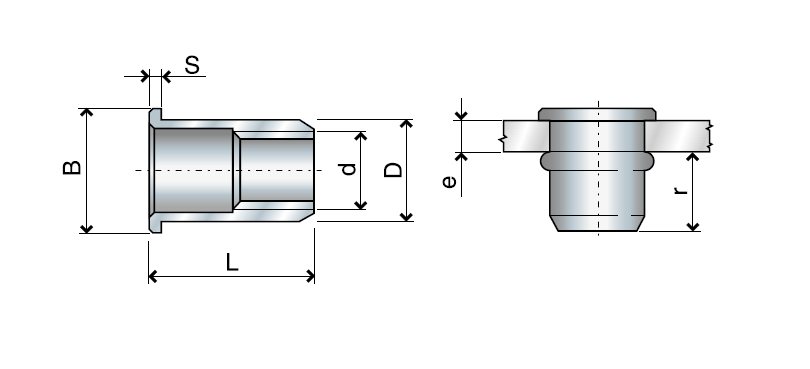

Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 4,9mm, the length is 9mm, and the tread size is M3. The minimum clamping range is 0,3mmand the maximum clamping range is 1,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
7
Shape
Round
Tread size
M3
Collar
Cylindrical
Material
AlMg 3KOM5
Material type
Aluminium
r, max.
6
S
0,8
Series
FTT/C
Type
Open
Diameter in mm
4.9
Torque in N.m
0.7
Hole diameter in mm
5
L
9
Clamping range, min.
0.3
Clamping range, max.
1.8
Tensile strenght, axial
2600
Long description
Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 4,9mm, the length is 9mm, and the tread size is M3. The minimum clamping range is 0,3mmand the maximum clamping range is 1,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
