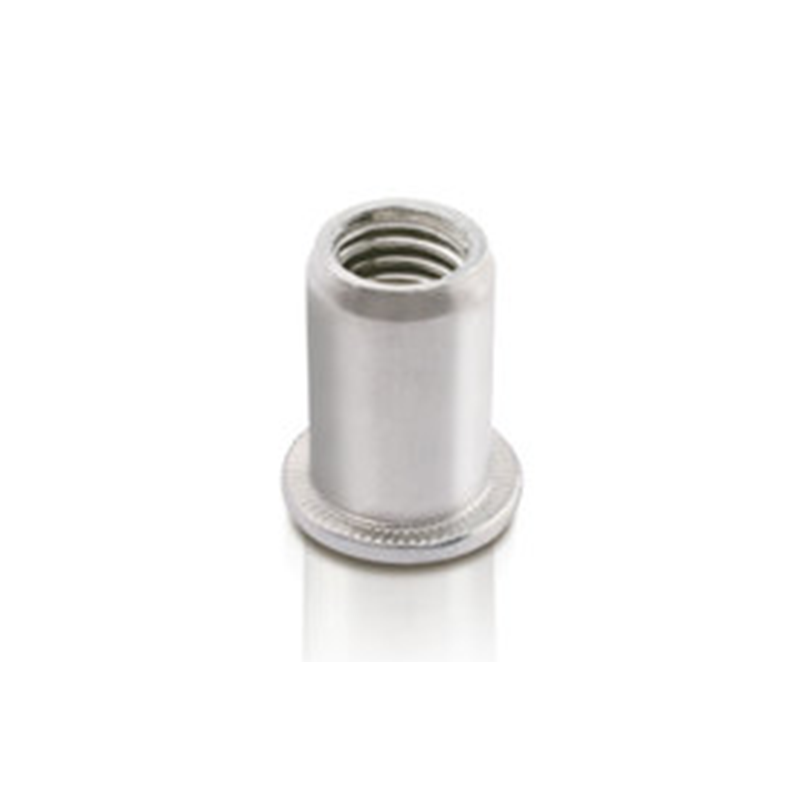

Nut, open, round, aluminium, diameter=5,9, M4, L=13, min. clamping range=2,5
MT111467
Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 13mm, and the tread size is M4. The minimum clamping range is 2,5mmand the maximum clamping range is 4mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

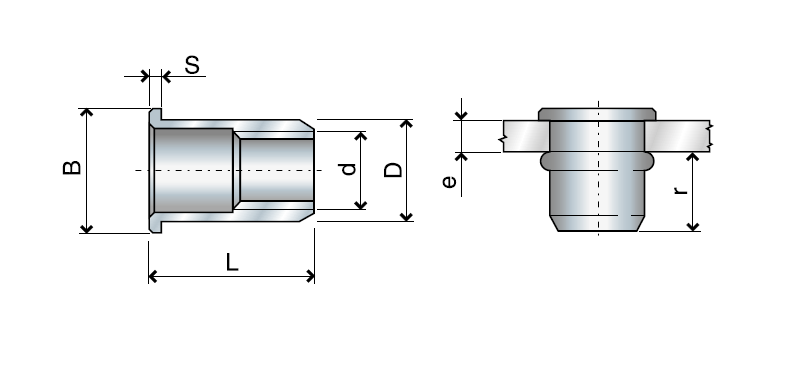

B
9
Shape
Round
Tread size
M4
Collar
Cylindrical
Material
AlMg 3KOM5
Material type
Aluminium
r, max.
7,4
S
1
Series
FTT/L
Type
Open
Diameter in mm
5.9
Drejningsmoment i N.m
2.5
Hole diameter in mm
6
Hulmål i mm
0
L
13
Nitteevne, min.
2.5
Nitteevne, max.
4
Tensile strenght, axial
3900
Long description
Nut manufactured in aluminium of the type open and with cylindrisk collar. The diameter is 5,9mm, the length is 13mm, and the tread size is M4. The minimum clamping range is 2,5mmand the maximum clamping range is 4mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
